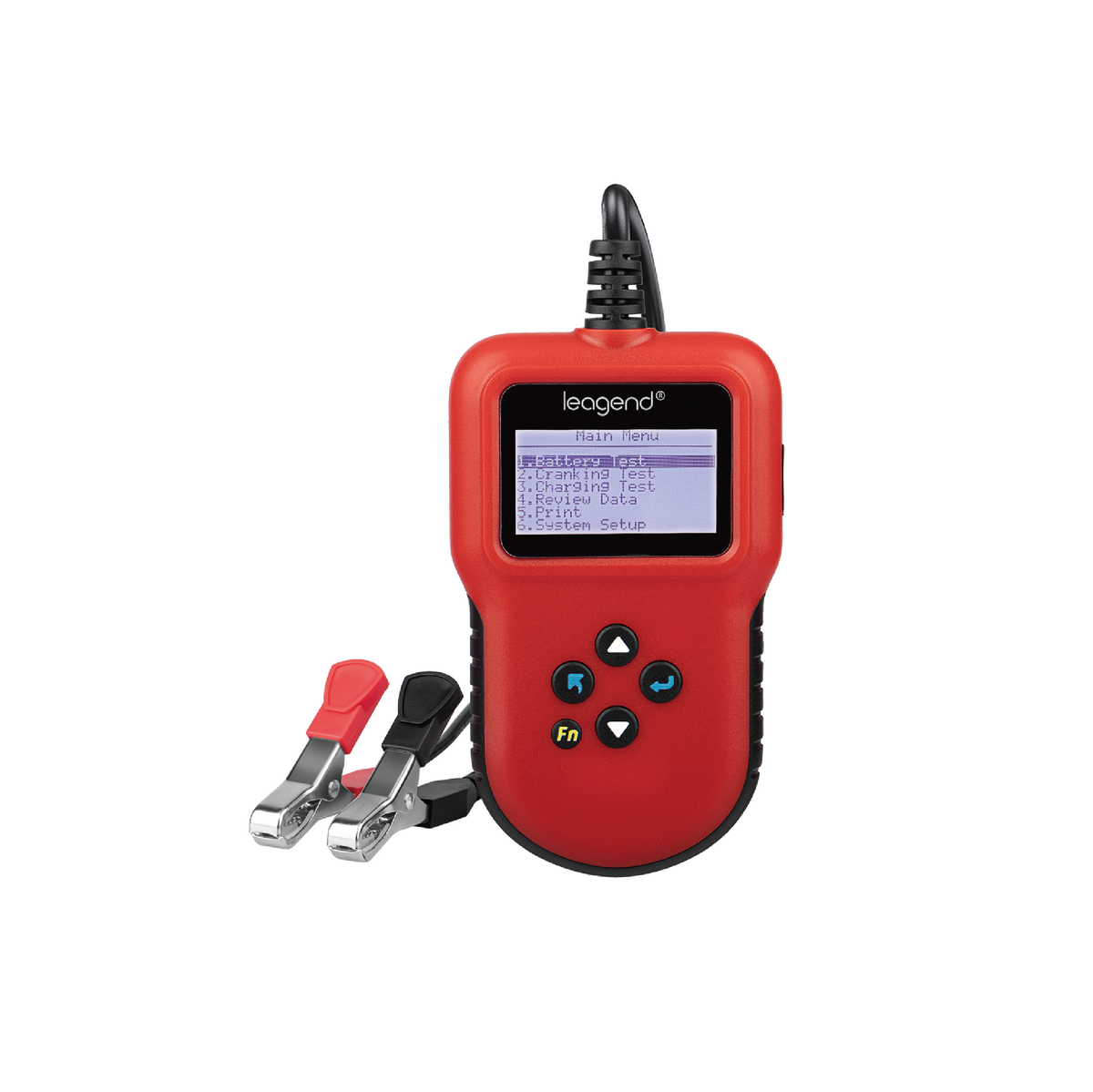

12V Lead-Acid & LiFePO4 Battery Tester

12V Lead-Acid & LiFePO4 Battery Tester

$79.99 USD
$79.99 USD $79.99 USD
Sale Sold out
Shipping calculated at checkout.

Overview

BA106, a 12V Lead-Acid & LiFePO4 Battery Tester, is an advanced diagnostic tool designed for both 12V lead-acid and LiFePO4 engine starting batteries. It offers detailed testing of key parameters such as CCA (cold cranking amps), internal resistance, voltage, state of charge, and state of health. The tester also evaluates the 12V starting and charging systems to ensure optimal vehicle performance.

Key Features

VERSATILE BATTERY TESTER

  • Test 12V lead-acid battery and LiFePO4 engine starting battery
  • Test the CCA (cold cranking amps)/internal resistance/voltage/state of charge (SoC)/state of health (SoH)
  • Test the 12V starting system and charging system

UNIQUE CUSTOM FAST KEY

  • leagend BA101 does more than test the battery. It can also evaluate the vehicle's 12V starting system and charging system, helping you identify potential problems beyond the battery itself.

Automatical features

  • Automatically save the last test result for review
  • Automatic temperature compensation

PRINT THE TEST RESULTS

  • Print test results by connecting to a computer

BUILT-IN PROTECTION SYSTEM

  • Built-in protection for short circuit and reverse connection

Specifications

Language
English, French, German, Spanish, Italian, Dutch
Application
All 12V lead-acid battery and LiFePO4 engine starting batteries
Test Standard and Range
Lead-acid batteries: JIS(26A17-245H528) CCA/BCI/CA/MCA/EN/SAE(100-2000) DIN/IEC(100-1400) GB(30-220Ah); LiFePO4 batteries: JIS(26A17-150F51) CCA/BCI/CA/MCA/EN/SAE(20-1000) DIN/IEC(20-700) GB(20-120Ah)
Input Voltage
8V~30V
Operating Temperature
-10℃~60℃ (14℉~140℉)
Storage Temperature
-20℃~70℃ (-4℉~158℉)
