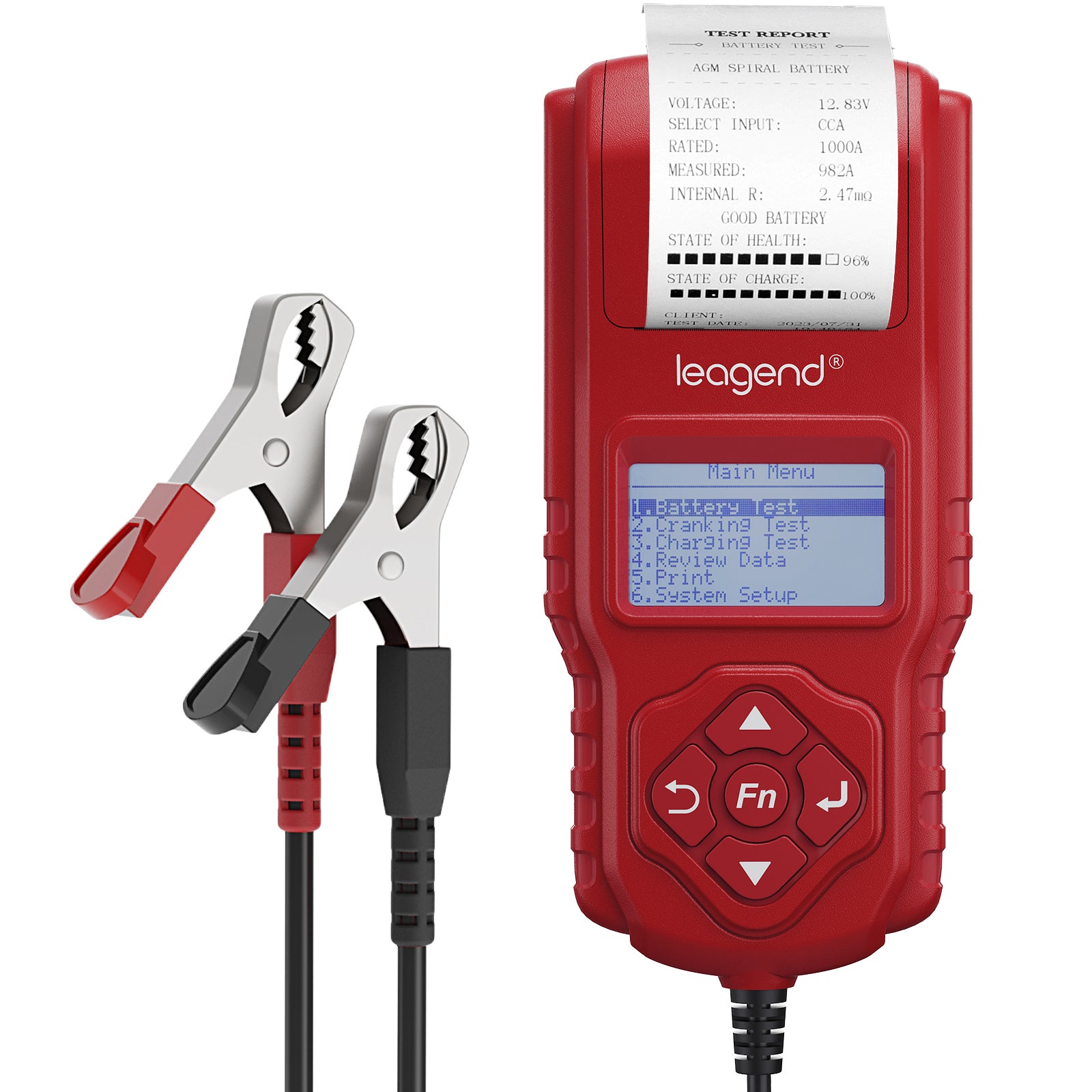

leagend BA2000 is a powerful diagnostic tool designed for testing lead-acid batteries and vehicle electrical systems. It supports both 12V and 24V systems and provides detailed testing for CCA (cold cranking amps), internal resistance, voltage, state of charge (SoC) and state of health (SoH). In addition, leagend BA2000 evaluates the vehicle’s starting and charging systems for optimal performance.
ALL-IN-ONE BATTERY TEST TOOL
- Test the CCA (cold cranking amps), internal resistance, voltage, State of Charge (SoC), State of Health (SoH);

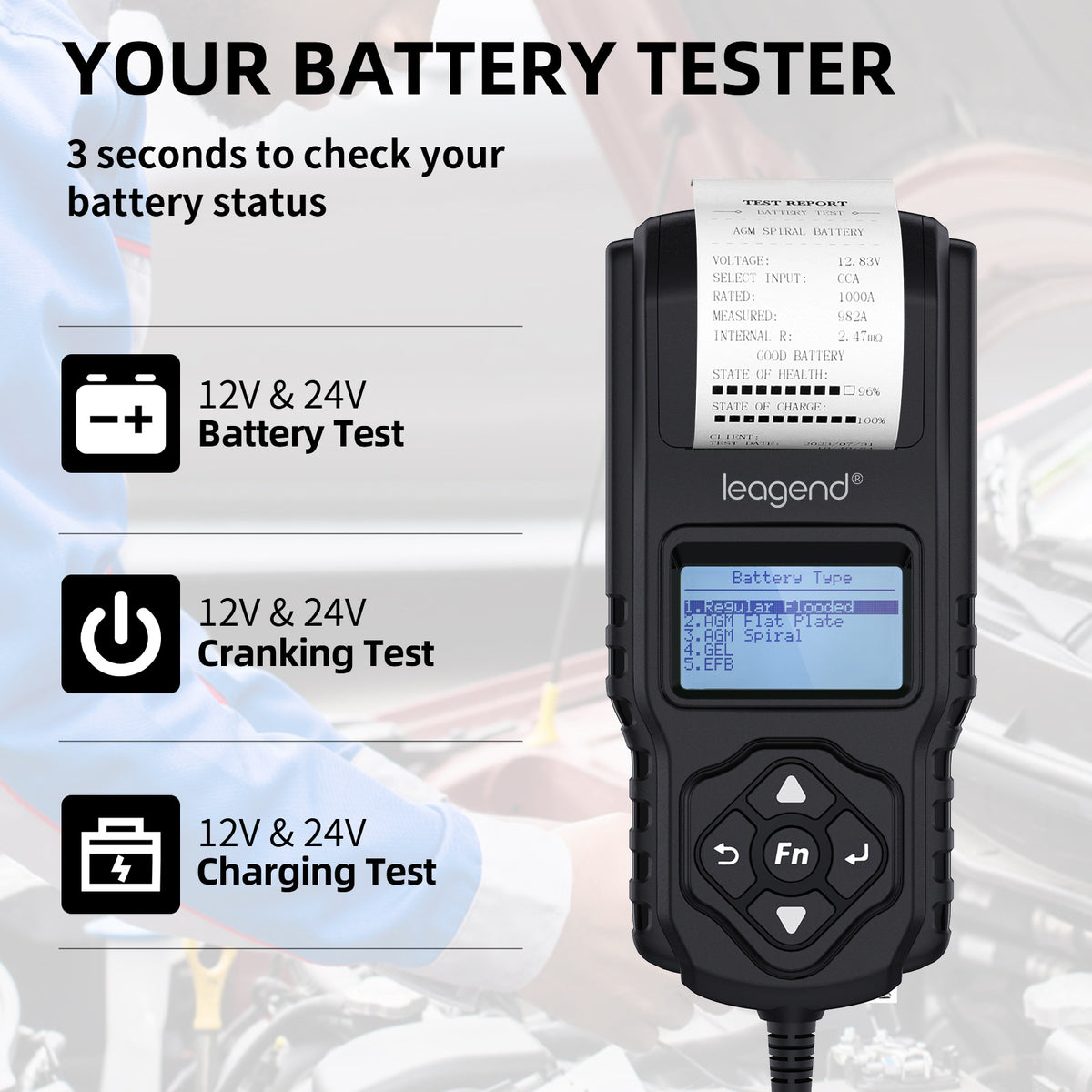

- Test 12V/24V vehicle starting system and charging system;

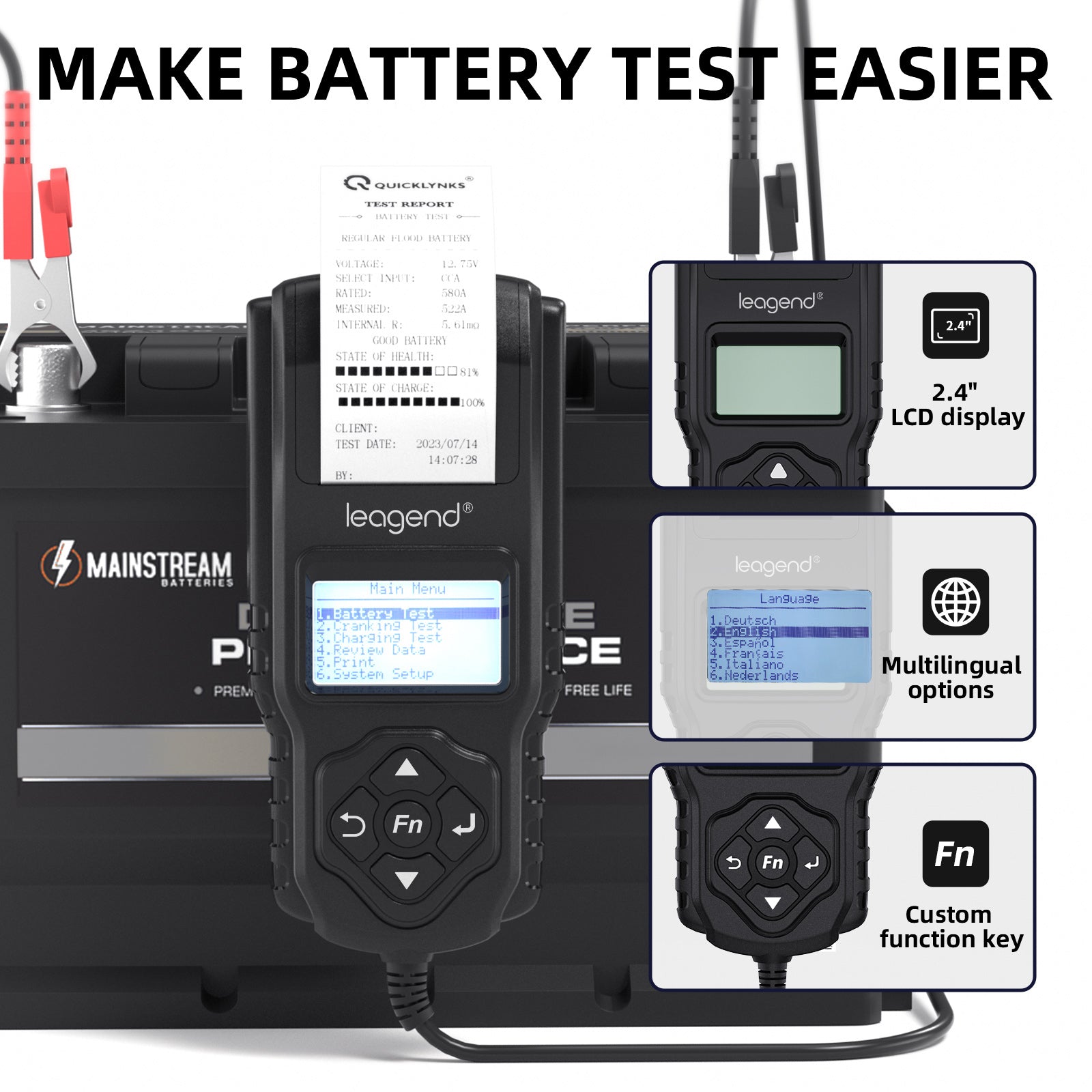

UNIQUE CUSTOM FAST KEY
Unique custom fast key Fn, we can set one-button test or one-button voltmeter mode;
BUILT-IN FUNCTIONS

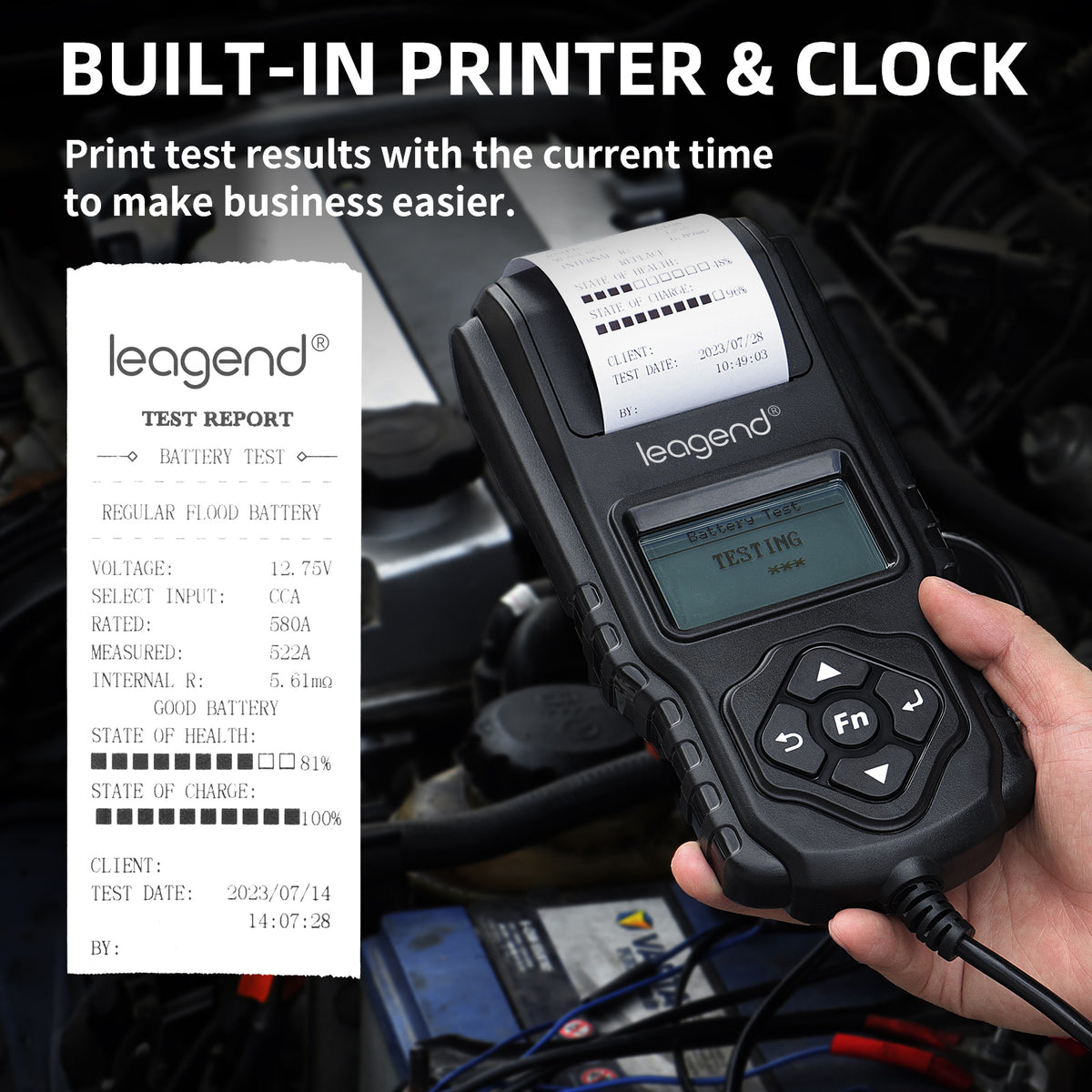

Built-in thermal printer to print test results;
Built-in clock to set date and time;
AUTOMATICAL FEATURES
Automatically save the last test result for review;
Automatic temperature compensation;
BUILT-IN PROTECTION SYSTEM
Built-in protection for short circuit and reverse connection;
PRODUCT PARAMETERS
Language
English, Japanese, Spanish, French, German, Dutch, Italian, Chinese
Application
All 12V lead-acid (car, truck, boat) engine starting batteries
Test Standard and Range
JIS(26A17-245H528)
CCA/BCI/CA/MCA/EN/SAE(100-2000)
DIN/IEC(100-1400)
GB(30-220Ah)
Input Voltage
8V~30V

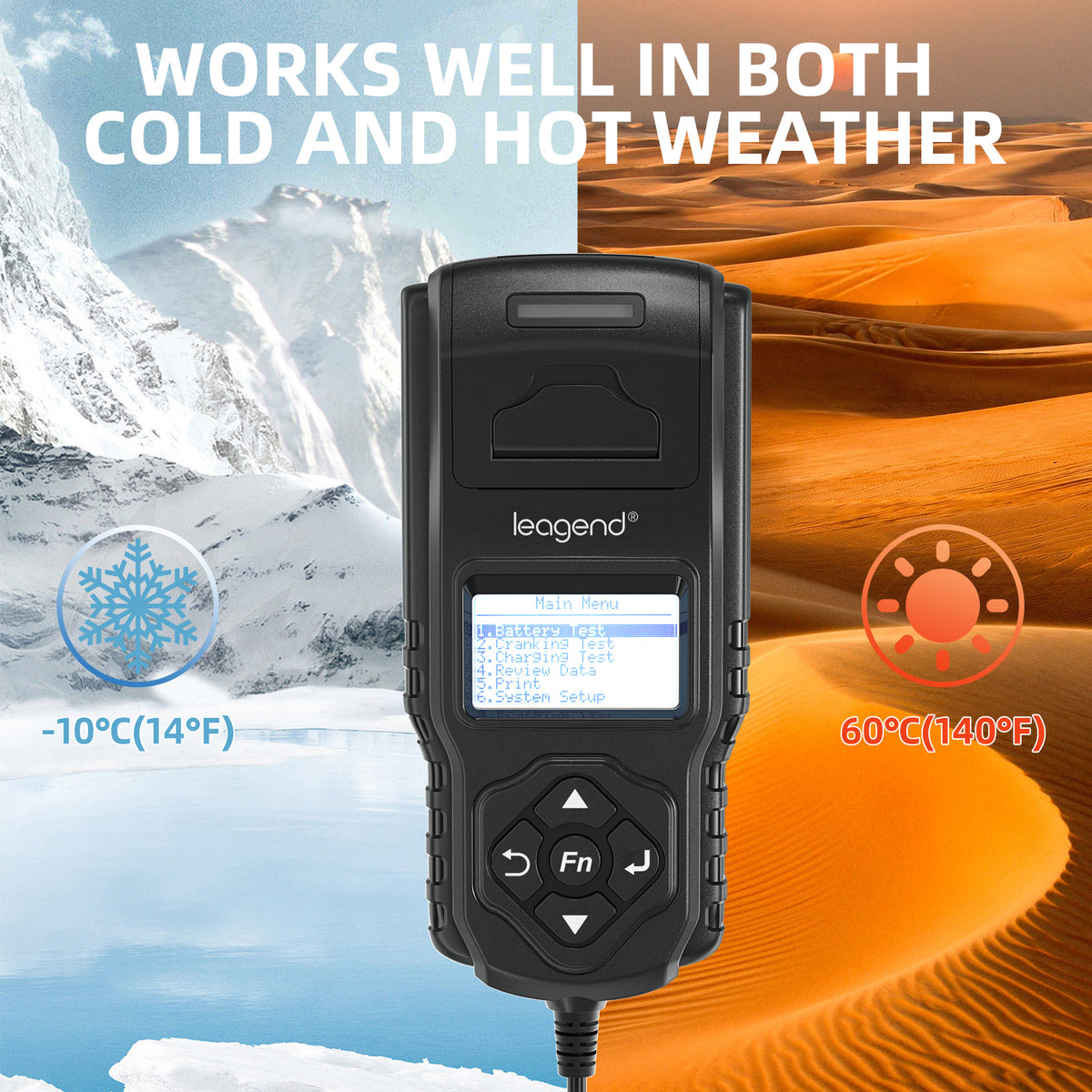

Operating Temperature
-10℃~60℃ (14℉~140℉)
Printer Operating Temperature
0℃~50℃ (32℉~122℉)
Storage Temperature
-20℃~70℃ (-4℉~158℉)
