leagend BA570 is a comprehensive diagnostic tool for vehicles. It reads and clears engine trouble codes, supports dynamic data flow with 249 ECU operating parameters, provides freeze-frame data and I/M status, checks and resets the engine indicator and read vehicle information (VIN, IDs, CVNs).
leagend BA570 offers dual system detection for the engine and transmission systems and tests 12V/6V lead-acid batteries, including CCA, internal resistance, voltage, state of charge (SoC), state of health (SoH). It features built-in LED lights, real-time voltage curve displays, and stores up to 1750 test records for efficient analysis and diagnostics.
leagend BA570 offers dual system detection for the engine and transmission systems and tests 12V/6V lead-acid batteries, including CCA, internal resistance, voltage, state of charge (SoC), state of health (SoH). It features built-in LED lights, real-time voltage curve displays, and stores up to 1750 test records for efficient analysis and diagnostics.

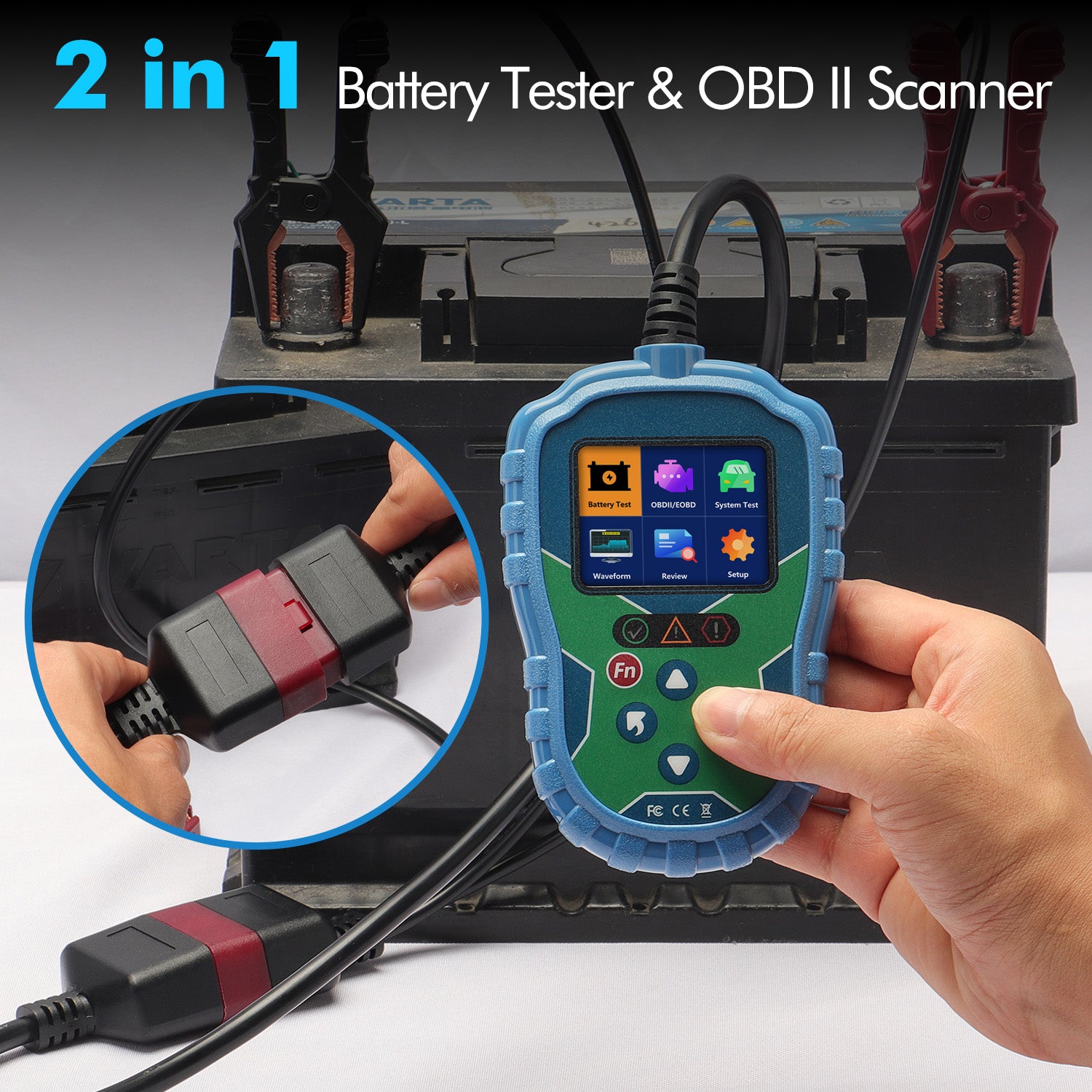

2-IN-1 OBD II SCANNER AND TESTER

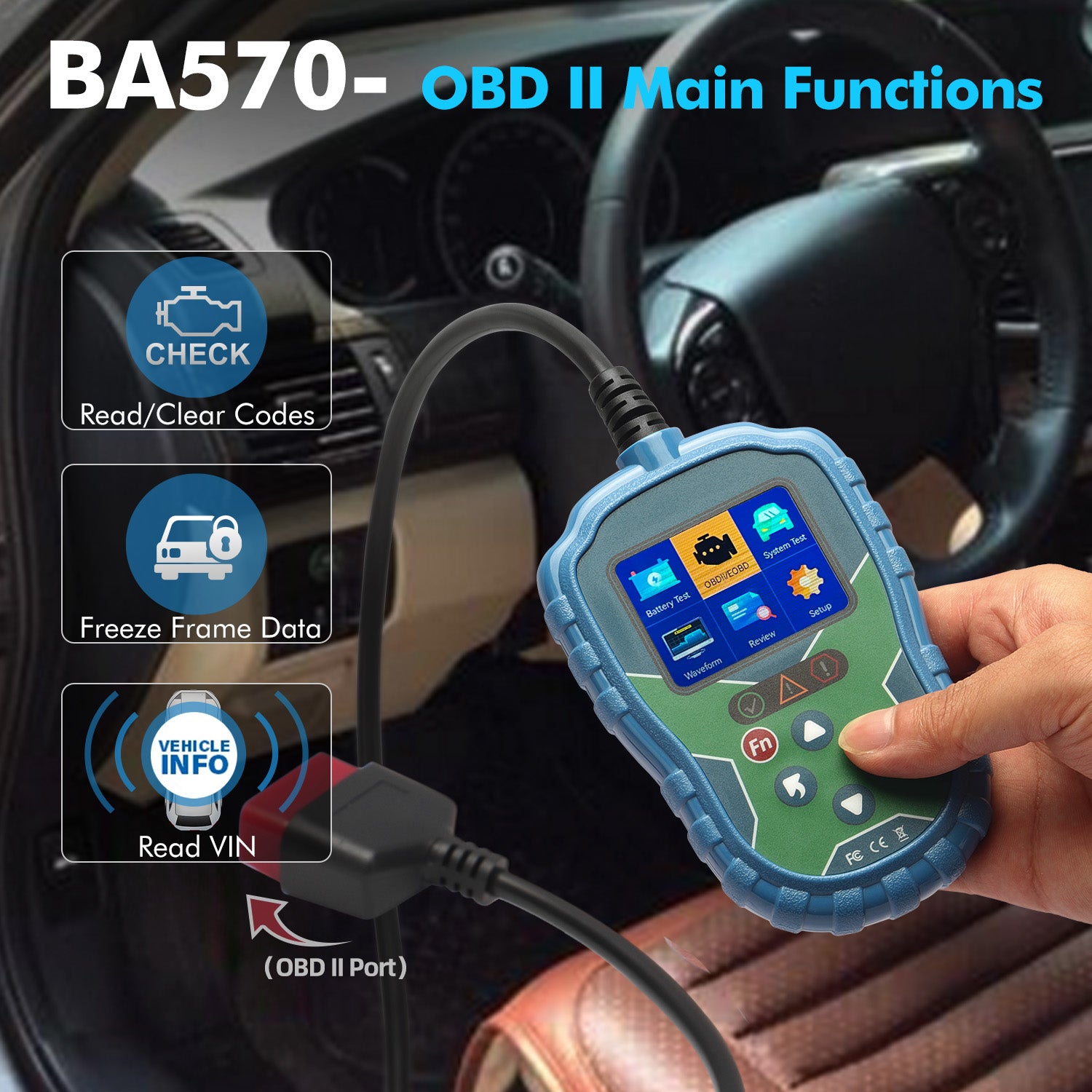

- Read or clear engine trouble codes;
- Check and turn off the engine indicator (MlL), clear the code, and reset the detector；
- Read vehicle information (Vehicle identification number VIN, Calibration Identification number IDs, Calibration Verification number CVNs)；

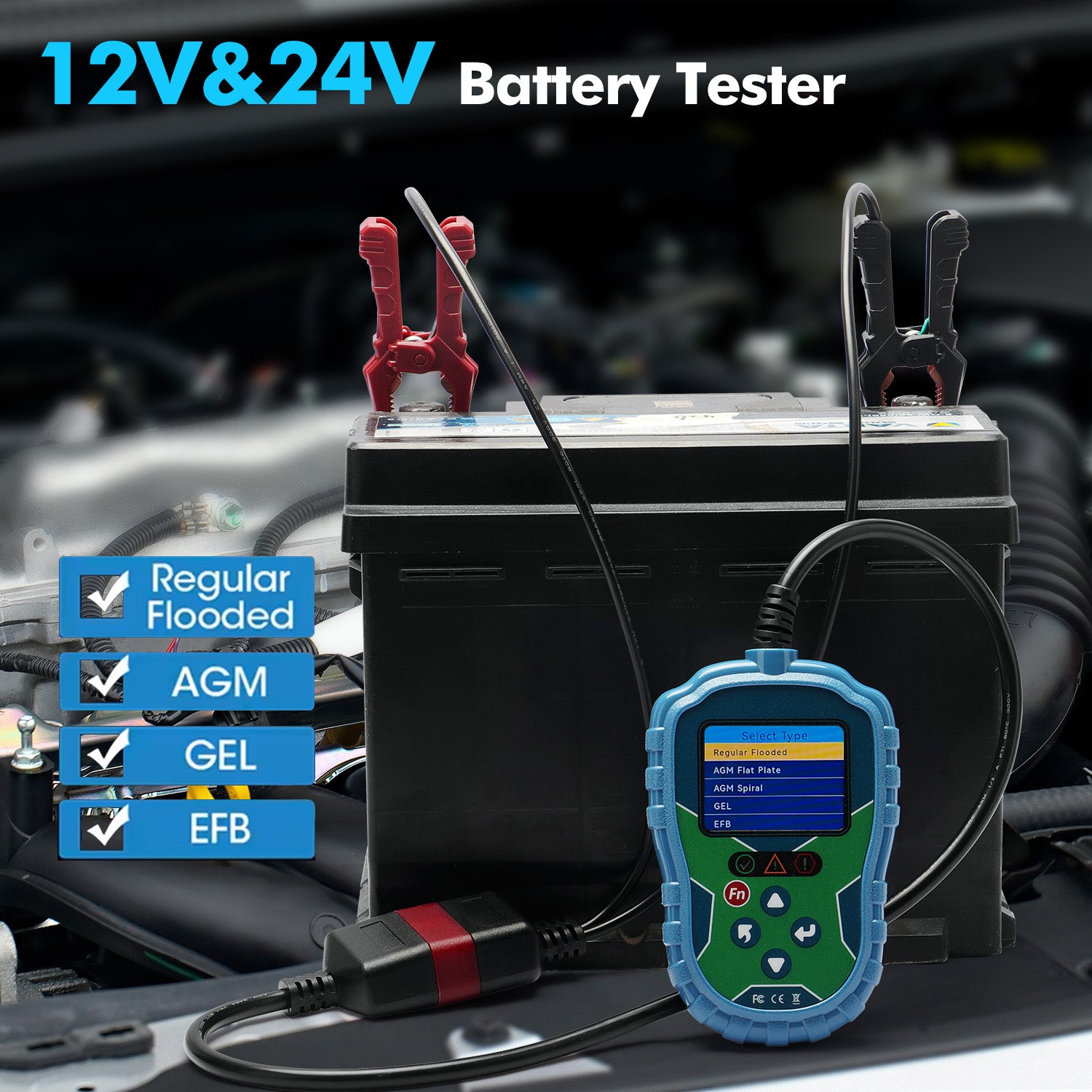

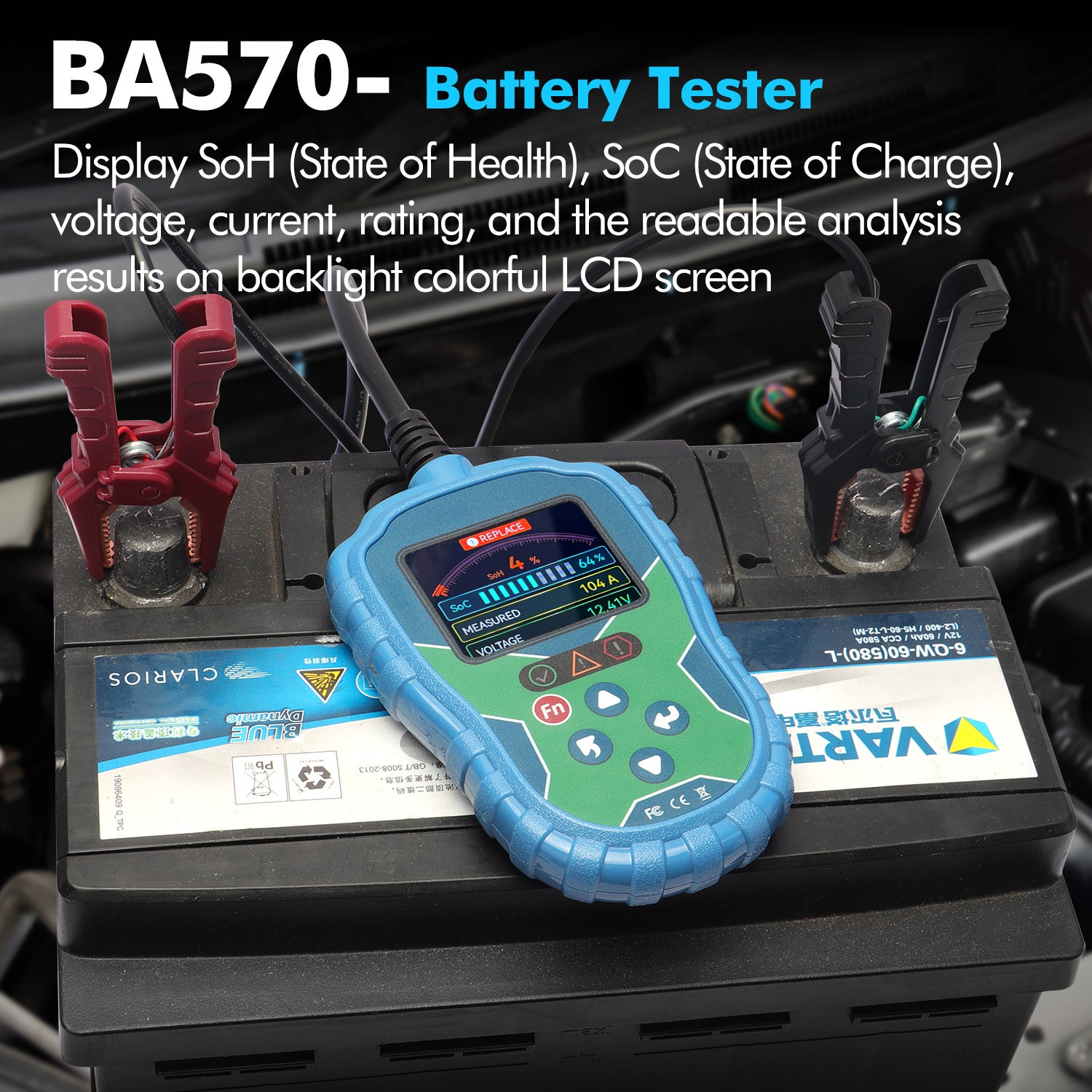

- Test the 12V/6V lead-acid battery CCA (cold cranking amps), internal resistance, voltage, state of charge (SoC), state of health (SoH);

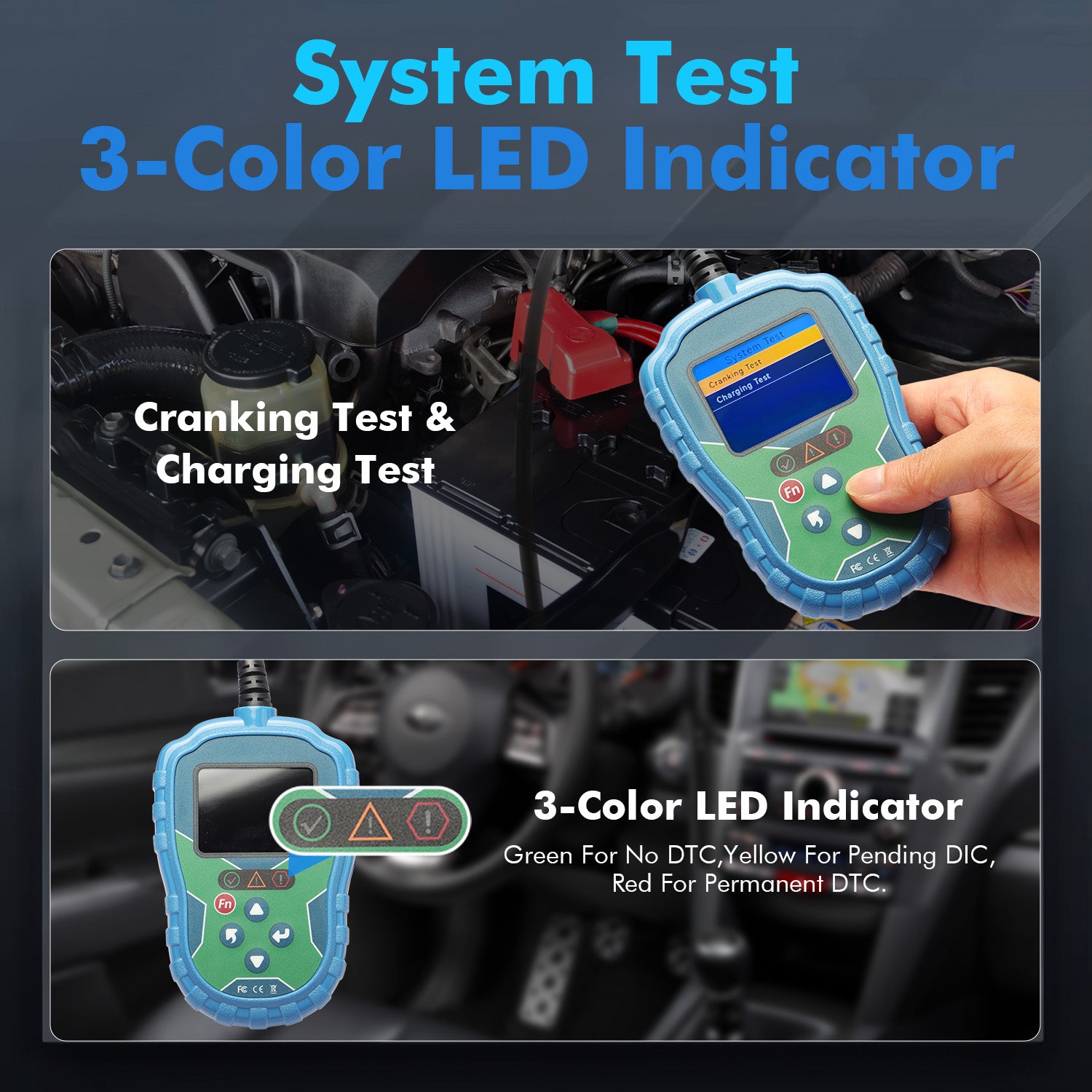

- Test the 24V/12V vehicle starting system and charging system;
One-key quick test
One-key quick test One-key quick test function for batch battery continuous test, real-time voltage curve, OBD II diagnosis;
Save historical test records
Can save up to 1750 historical test records, including battery test, starting test, charging test, voltage curve and engine diagnosis report, 350 each;
Dual system detection
Dual system detection, optional engine system and transmission system；
Dynamic display
-
Dynamic display of data flow information, supporting 249 ECU operating parameters (live data)；
-
Real-time voltage curve graphic display, can be saved up to 120 seconds and played back;
-
View freeze frame data and I/M status information；
Built-in LED lights
Built-in LED lights for battery and OBD II diagnosis status;
PRODUCT PARAMETERS
Language
English, French, Dutch, German, Spanish, Italian, Russian, Portuguese, Polish, Finnish
Display
2.4" TFT Color Screen
Supported Battery
All 12V & 6V lead-acid engine starting batteries: Regular Flooded, AGM, GEL, EFB
Supported Models
OBD II/EOBD car, SUV, light truck
Supported Protocols
CAN, VPW, PWM, ISO9141, KWP2000
Test Standard and Range
JIS(26A17-245H528), CCA/BCI/CA/MCA/EN/SAE(20-2000), DIN/IEC(20-1400), GB(2-220Ah)
Input Voltage
5V-32V DC
Operating Temperature
-10℃~60℃ (14℉~140℉)
Storage Temperature
-20℃~70℃ (-4℉~158℉)
