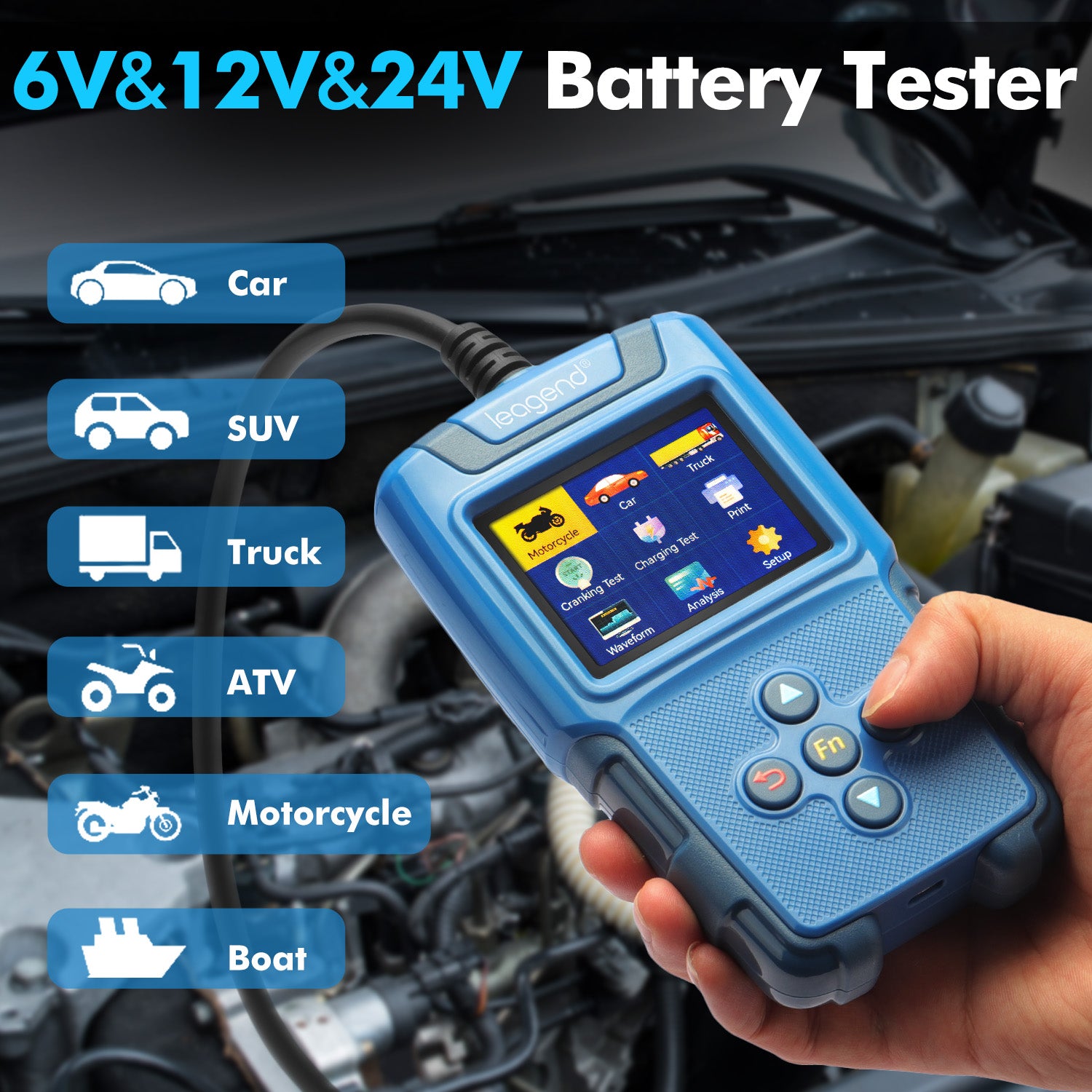

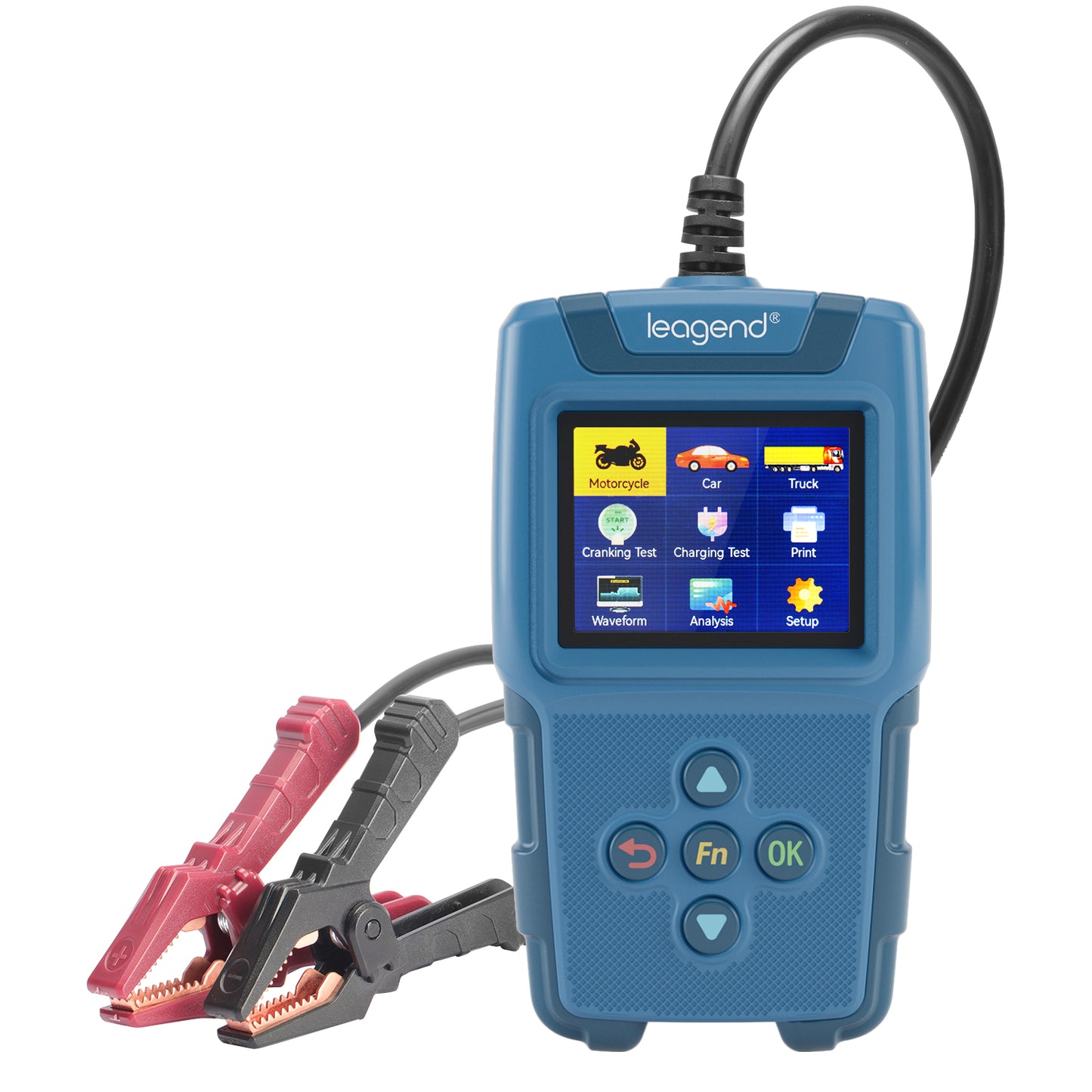

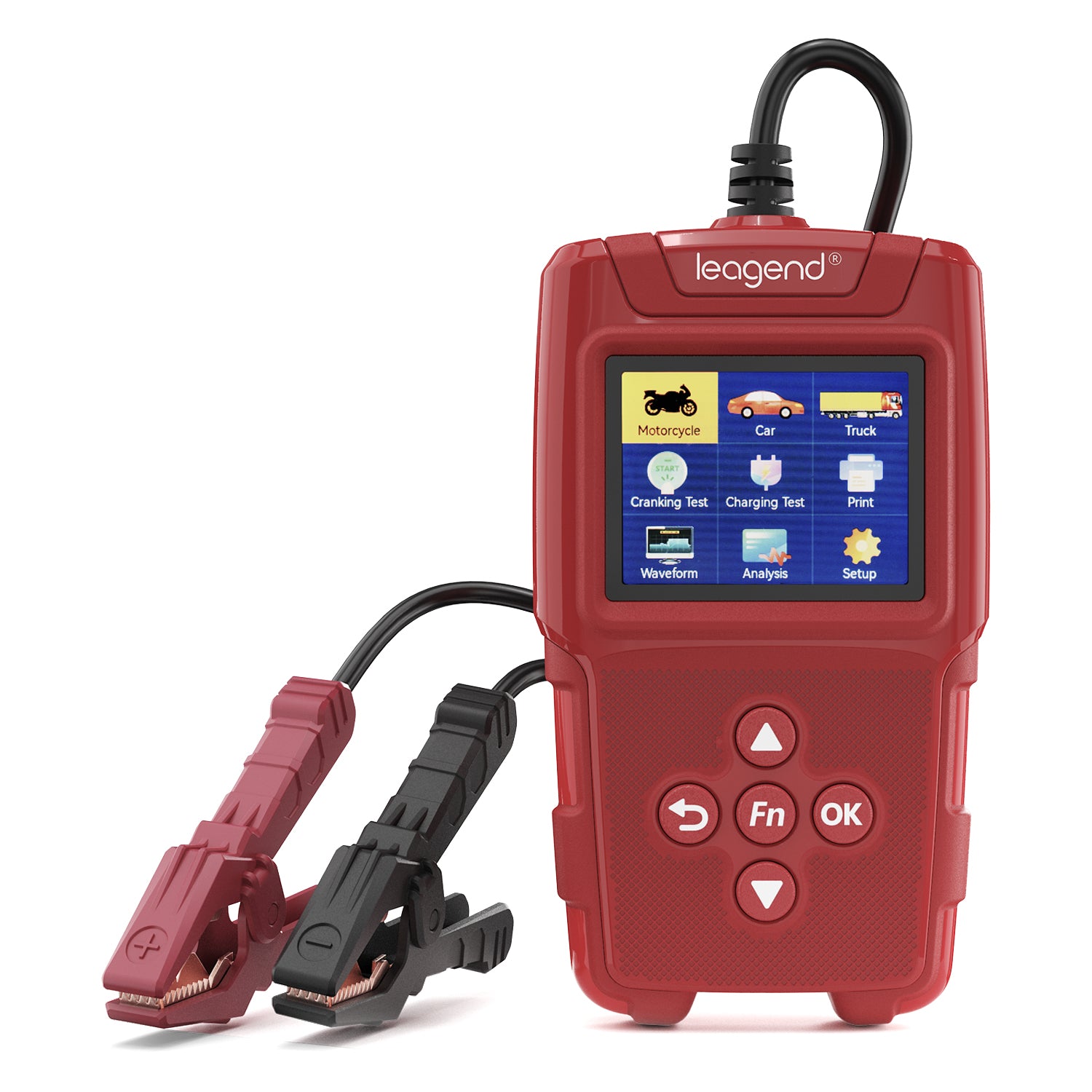

leagend BA640 is a versatile diagnostic tool designed for testing lead-acid batteries and vehicle electrical systems. It supports 6V, 12V, and 24V batteries, providing essential diagnostics such as CCA (cold cranking amps), internal resistance, voltage, state of charge (SoC) and state of health (SoH). leagend BA640 also evaluates the starting and charging systems of vehicles, ensuring optimal performance.
ALL-IN-ONE BATTERY TESTER

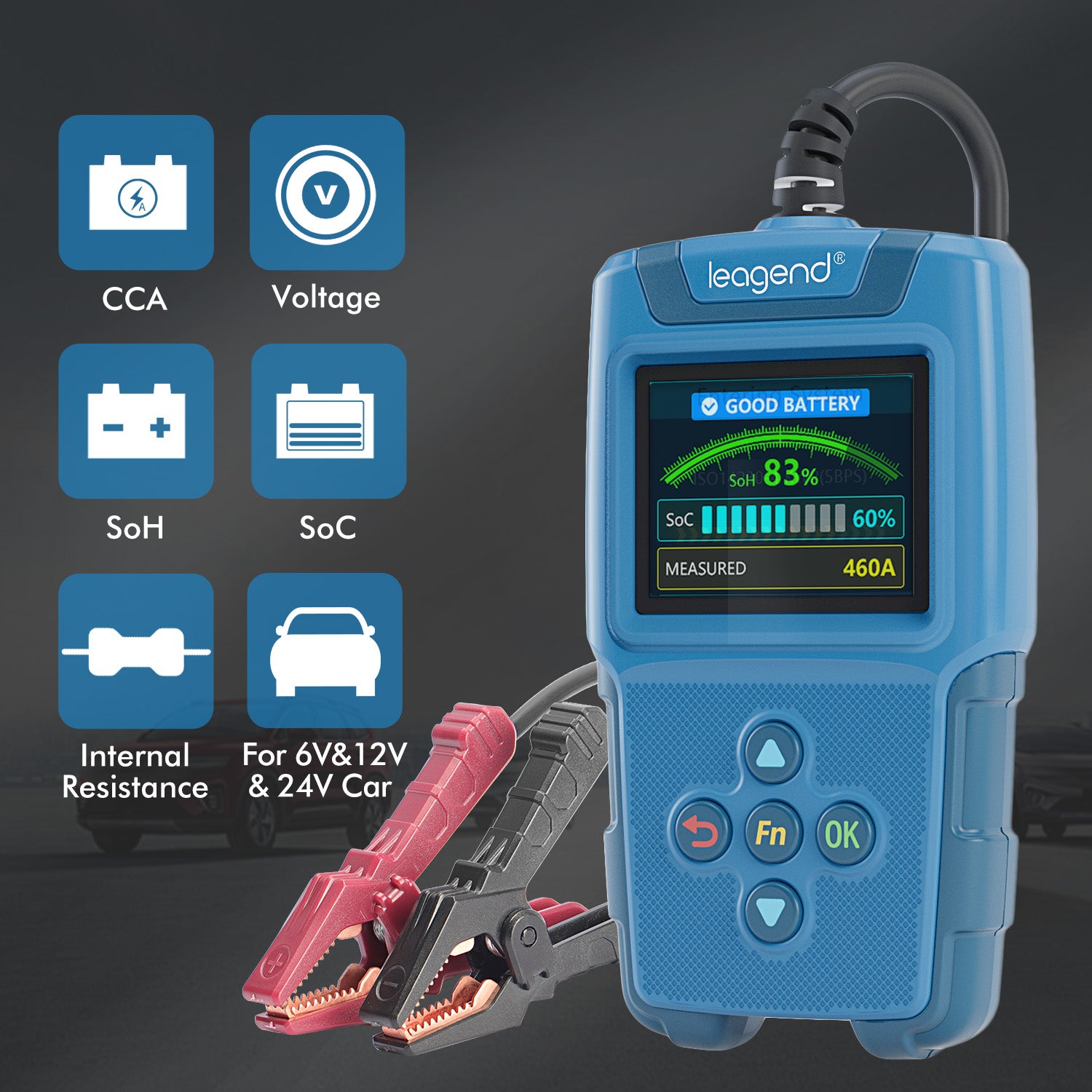

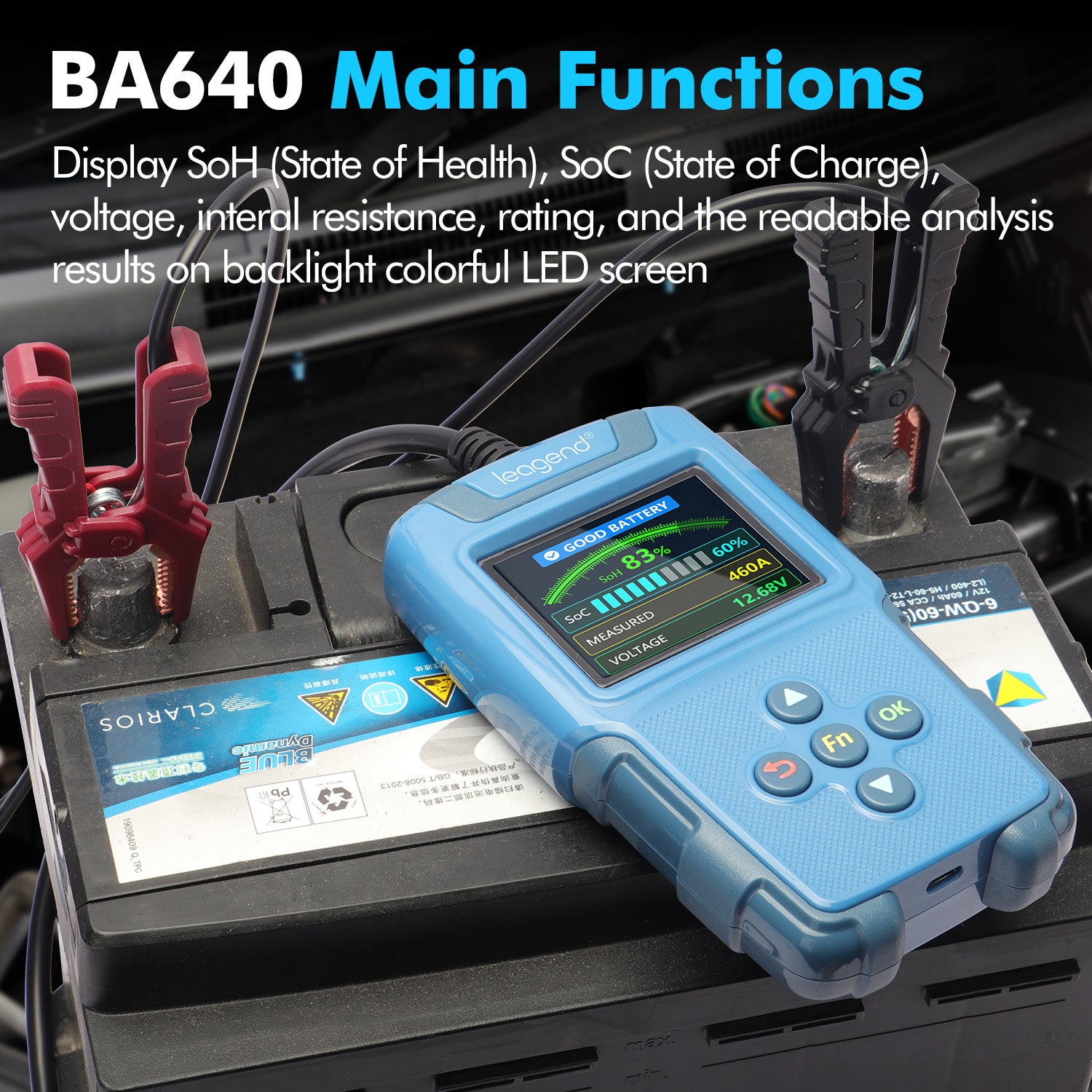

- Test the 24V/12V/6V Lead-acid Battery CCA (cold cranking amps), internal resistance, voltage, state of charge (SoC), state of health (SoH);
- Test the 24V/12V vehicle starting system and charging system;
ONE-KEY QUICK TEST
One-key quick test function for batch battery continuous test or real-time voltage curve；
PRINT THE TEST RESULTS
Print test results by connecting to a computer via USB cable;
REAL-TIME DISPLAY
Real-time voltage curve graphic display, can be saved up to 120 seconds and played back;
SAVE RECORDS
Can save up to 1400 historical test records, including battery test, starting test, charging test and voltage curve, 350 each;
PRODUCT PARAMETERS
Language
English, French, Dutch, German, Spanish, Italian, Chinese, Japanese, Korean, Russian, Portuguese, Polish, Finnish
Available

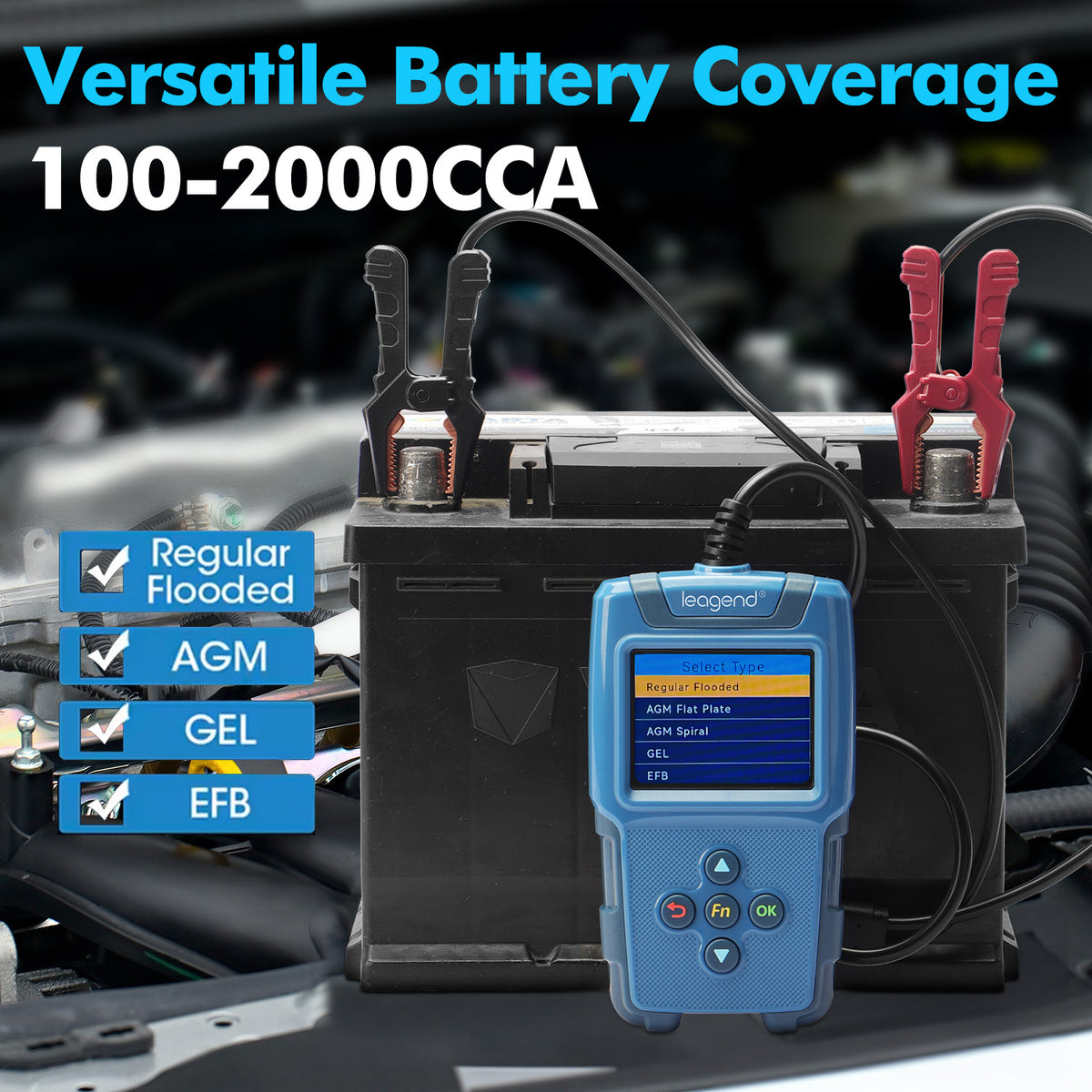

All 24V & 12V & 6V lead-acid (car, truck, motorcycle, boat) engine starting batteries: Regular Flooded, AGM, GEL, EFB
Test Standard and Range
JIS(26A17-245H528)
DIN/IEC(20-1400)
GB(2-220Ah)
CCA/BCI/CA/MCA/EN/SAE(20-2000)
Input Voltage
5-32V DC
Operating Temperature
-10℃~60℃ (14℉~140℉)
Storage Temperature
-20℃~70℃ (-4℉~158℉)
Display
2.8" TFT color screen
