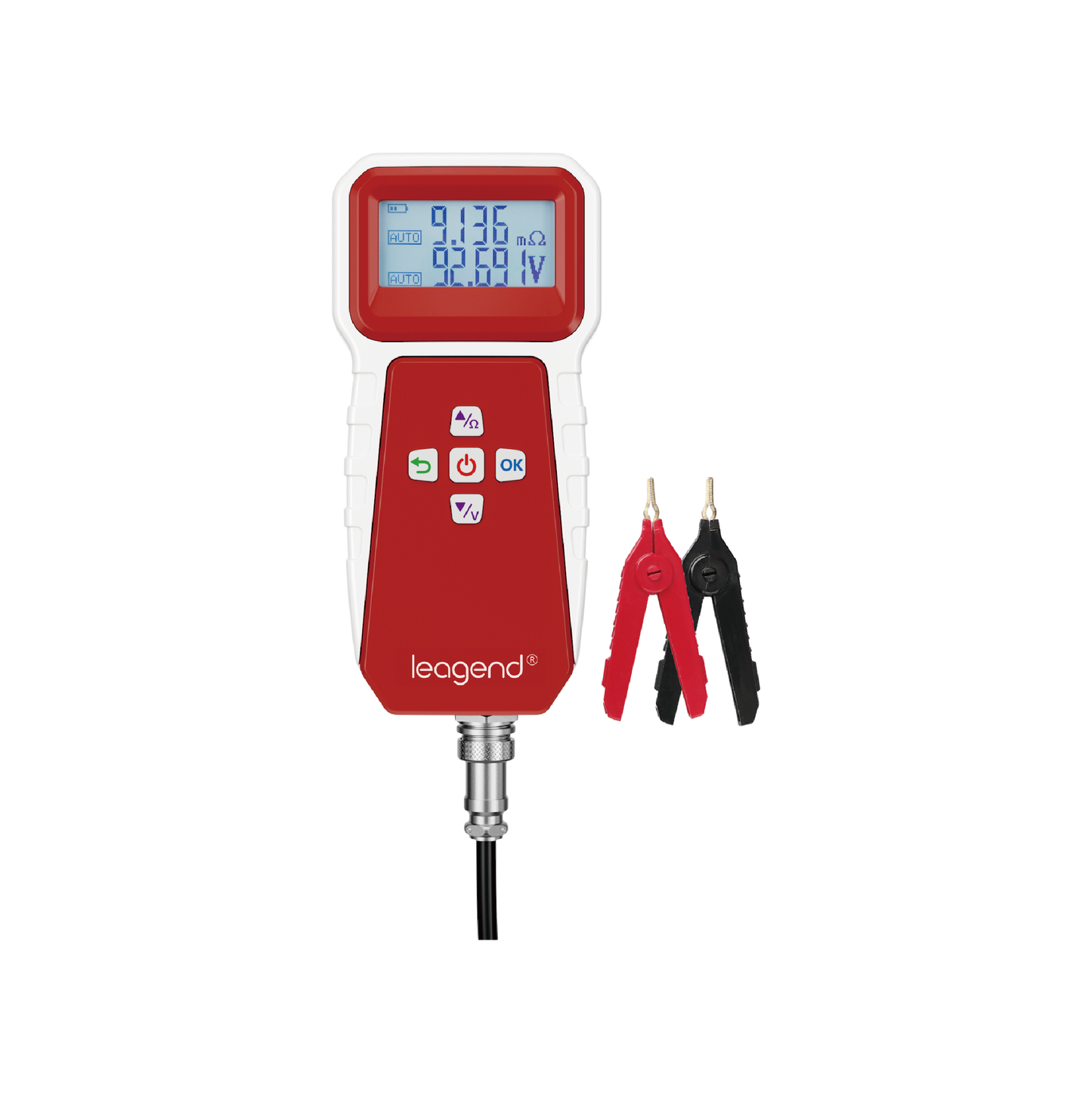

Battery Internal Resistance Tester
RT200
RT200
RT200
RT200

RT200 Battery Internal Resistance Tester

$195.00 USD
$195.00 USD $195.00 USD
Sale Sold out
Shipping calculated at checkout.

Overview

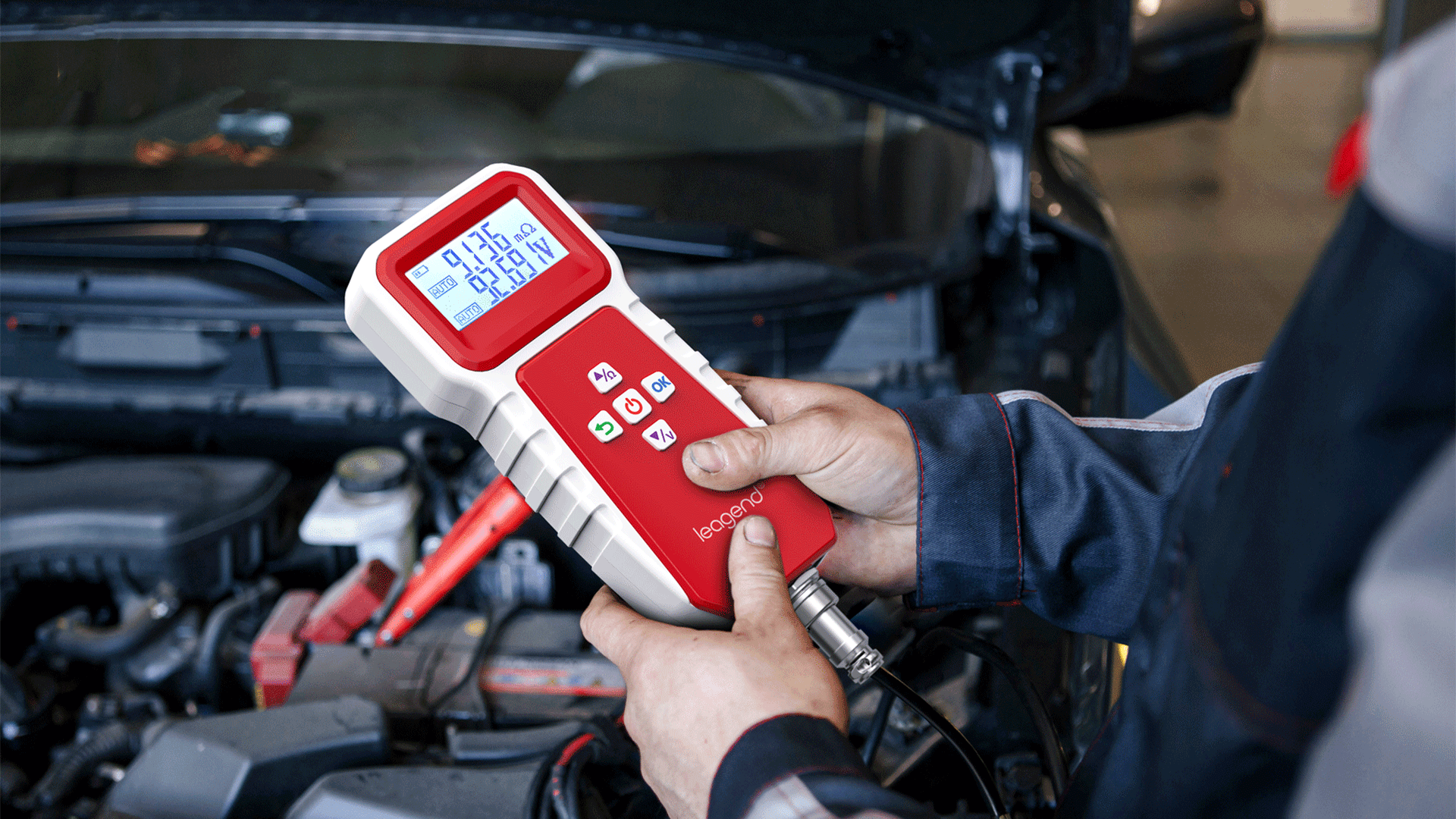

The leagend RT200 Battery Internal Resistance Tester helps you check battery condition by measuring internal resistance and voltage—two important indicators of battery performance and health. With a wide testing range of 1 μΩ–200 Ω and 0–100 V, leagend RT200 is suitable for testing automotive batteries, rechargeable batteries, lithium batteries, disposable batteries, and many other battery-powered applications.

Whether you are checking batteries at home, maintaining your vehicle, sorting rechargeable batteries, or troubleshooting a battery that is losing performance, leagend RT200 gives you accurate measurements you can save and review whenever you need them.

Key Features

Measure Internal Resistance to Check Battery Health

  • Internal resistance can increase as a battery ages or its performance declines. leagend RT200 measures battery internal resistance precisely, helping you identify batteries that may be deteriorating, underperforming, or no longer suitable for your application.

Wide 1 μΩ–200 Ω Resistance Testing Range

  • From very low-resistance battery connections to higher-resistance components, leagend RT200 provides a 1 μΩ to 200 Ω internal resistance measurement range for a wide variety of batteries and electrical components.

0–100 V Voltage Measurement

  • leagend RT200 measures voltage from 0 to 100 V, making it suitable for testing batteries and battery systems across a wide range of applications.

Test, Save & Review Results

  • leagend RT200 automatically saves measurement results, allowing you to compare readings over time and keep track of battery condition. It can store up to 160 groups of test results.

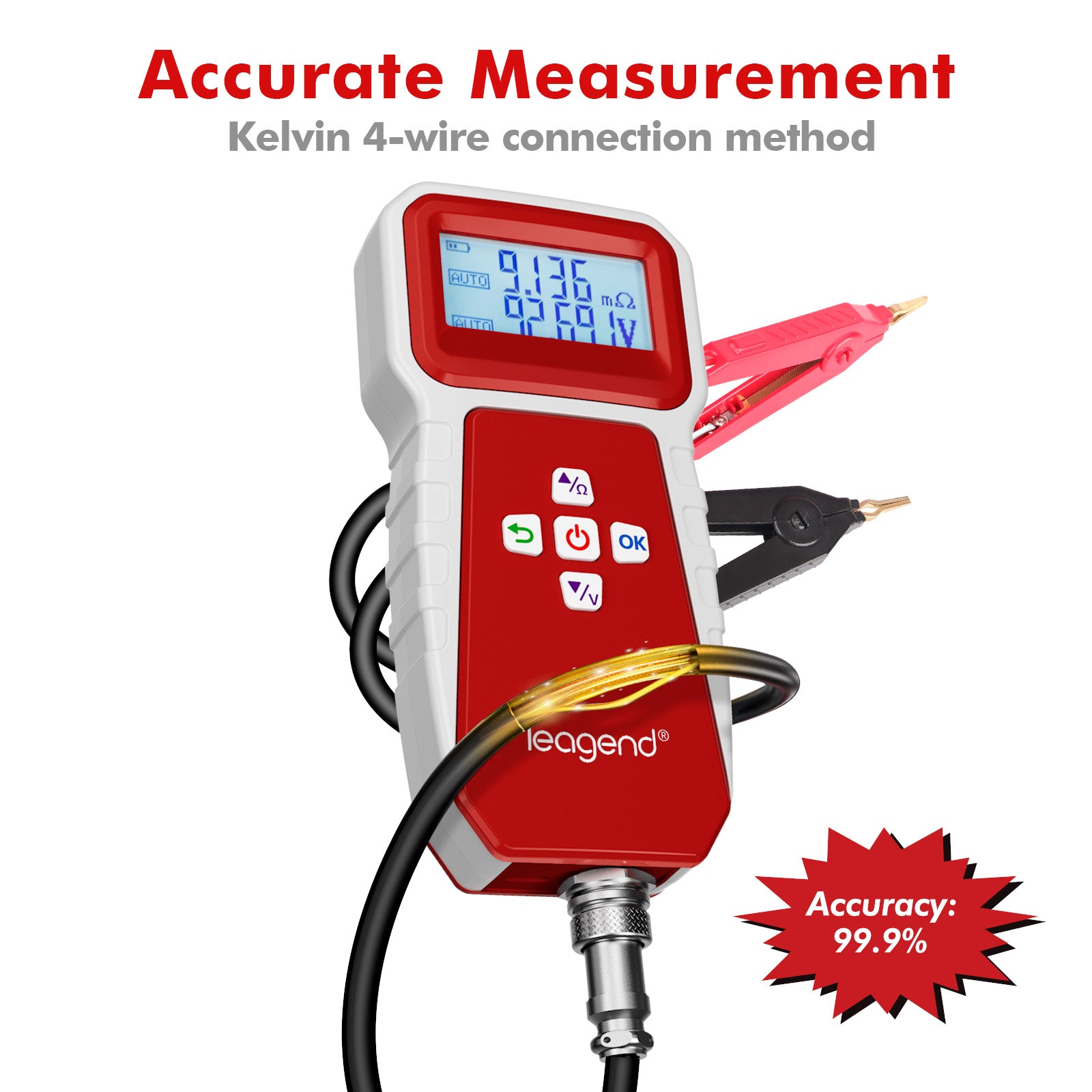

High Measurement Accuracy

  • With internal resistance accuracy of up to ±0.013 mΩ and voltage error of ±0.03 V, leagend RT200 provides precise measurements for battery condition checking and comparison.

Designed for Different Battery Types

  • leagend RT200 can be used with automotive batteries, rechargeable batteries, lithium batteries, disposable batteries, and other battery-powered devices within its supported measurement range.

Built-In Protection

  • Short-circuit protection, over-current protection, reverse-connection protection, and voltage protection help provide safer and more reliable battery testing.

USB Type-C Charging

  • The built-in 1450 mAh rechargeable battery provides convenient portable operation, while USB Type-C charging makes it easy to recharge the tester.

Automatic Power-Off

  • leagend RT200 automatically powers off after 5 minutes without operation, helping conserve its internal battery when the tester is left unused.

Specifications

Operating Temperature
-18℃~50℃ (-0.4℉~122℉)
Measurement Accuracy
±0.013mΩ
Voltage Error
±0.03V
Internal Resistance Test Range
1μΩ~200Ω
Voltage Range
0-100V
Test Result Storage
160 groups
Average Operating Current
80mA
Lithium Battery Capacity
1450mAh
Charging Voltage
5V
Charging Port
Type-C
Charging Time
2 Hours
Auto Power-Off
Automatic shutdown within 5 minutes without operation
Storage Temperature
-20℃~50℃ (-4℉~122℉)

FAQ

leagend RT200 is a battery internal resistance tester and voltage tester designed to help evaluate battery condition. It measures internal resistance and voltage and stores test results for later review.
Internal resistance can increase as a battery ages or its performance declines. Measuring internal resistance gives you additional information about battery condition that a simple voltage measurement may not provide.
leagend RT200 can be used to test a wide variety of batteries, including automotive batteries, rechargeable batteries, lithium batteries, disposable batteries, and other batteries that fall within its 0–100 V voltage range and 1 μΩ–200 Ω resistance range.
Yes. leagend RT200 has a 0–100 V voltage measurement range, so it can measure 12V and 24V battery systems within its specified measurement range. Always follow the battery manufacturer's specifications and the RT200 user instructions when testing.
Yes. leagend RT200 can be used to measure the voltage and internal resistance of suitable lithium batteries within its measurement range. It is designed to provide useful battery condition information rather than simply checking whether a battery has voltage.
Yes. leagend RT200 can measure rechargeable batteries and is useful for comparing batteries based on voltage and internal resistance.
leagend RT200 provides internal resistance measurement accuracy of ±0.013 mΩ and voltage error of ±0.03 V, making it suitable for precise battery testing and comparison.
leagend RT200 can automatically save up to 160 groups of test results, allowing you to review previous measurements and compare battery readings.
leagend RT200 includes built-in short-circuit protection, over-current protection, reverse-connection protection, and voltage protection to help provide safer testing.
leagend RT200 has a built-in 1450 mAh rechargeable battery and uses a USB Type-C charging port. The charging voltage is 5 V and the charging time is approximately 2 hours.
Yes. leagend RT200 automatically powers off after approximately 5 minutes without operation to help conserve battery power.
Yes. leagend RT200 is suitable for individual users, DIY enthusiasts, car owners, electronics hobbyists, and advanced battery users who want more information about battery condition than a basic voltage tester can provide.
