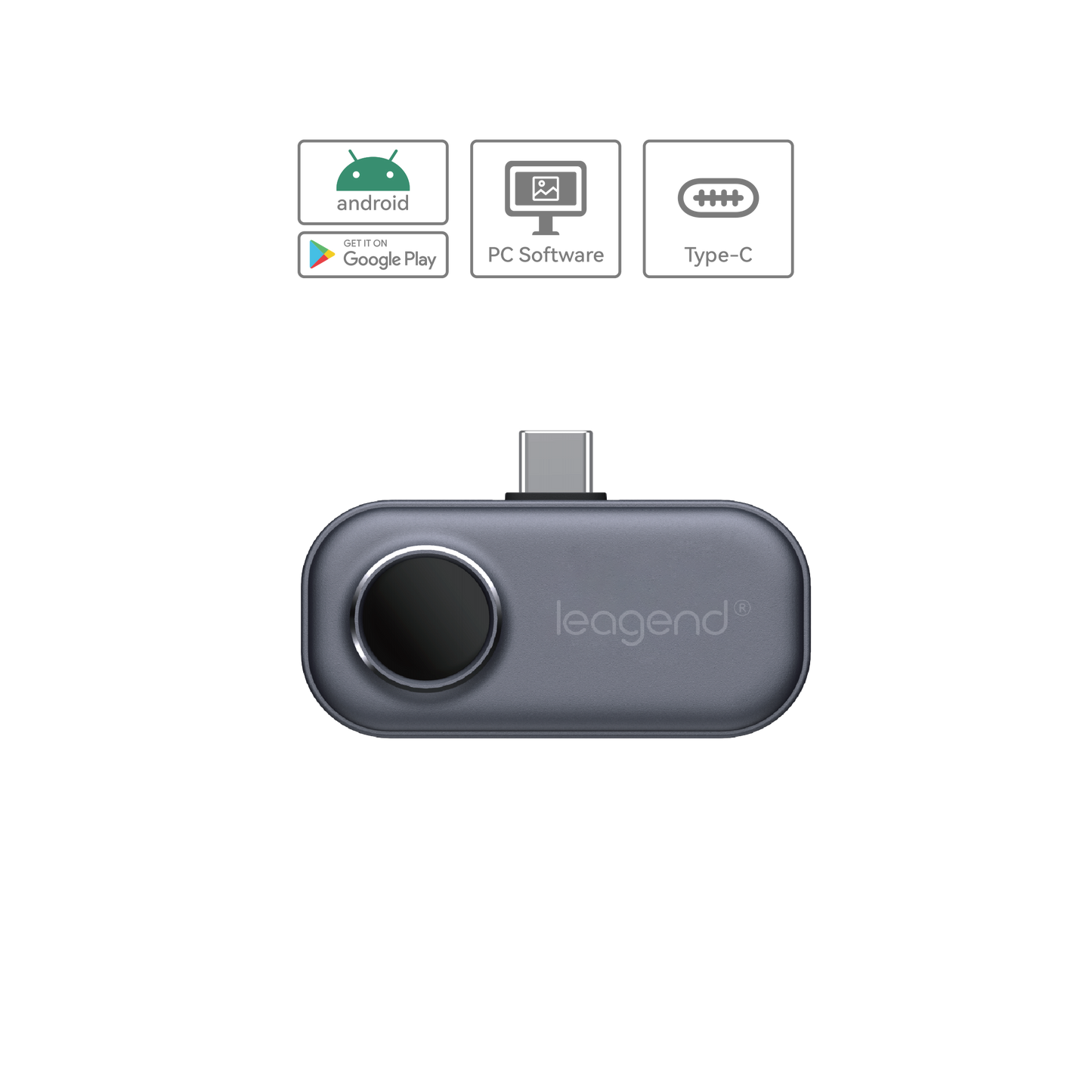

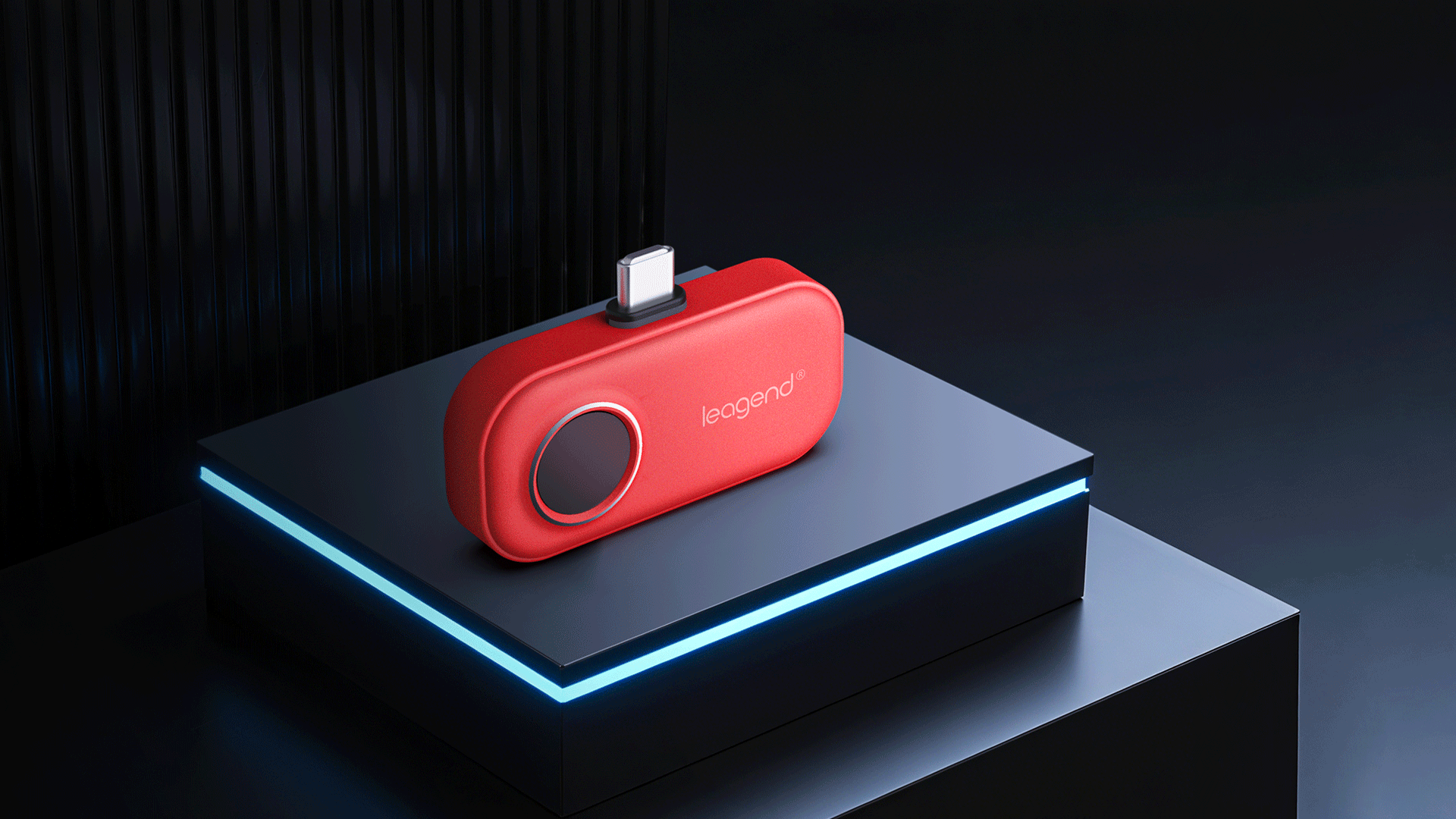

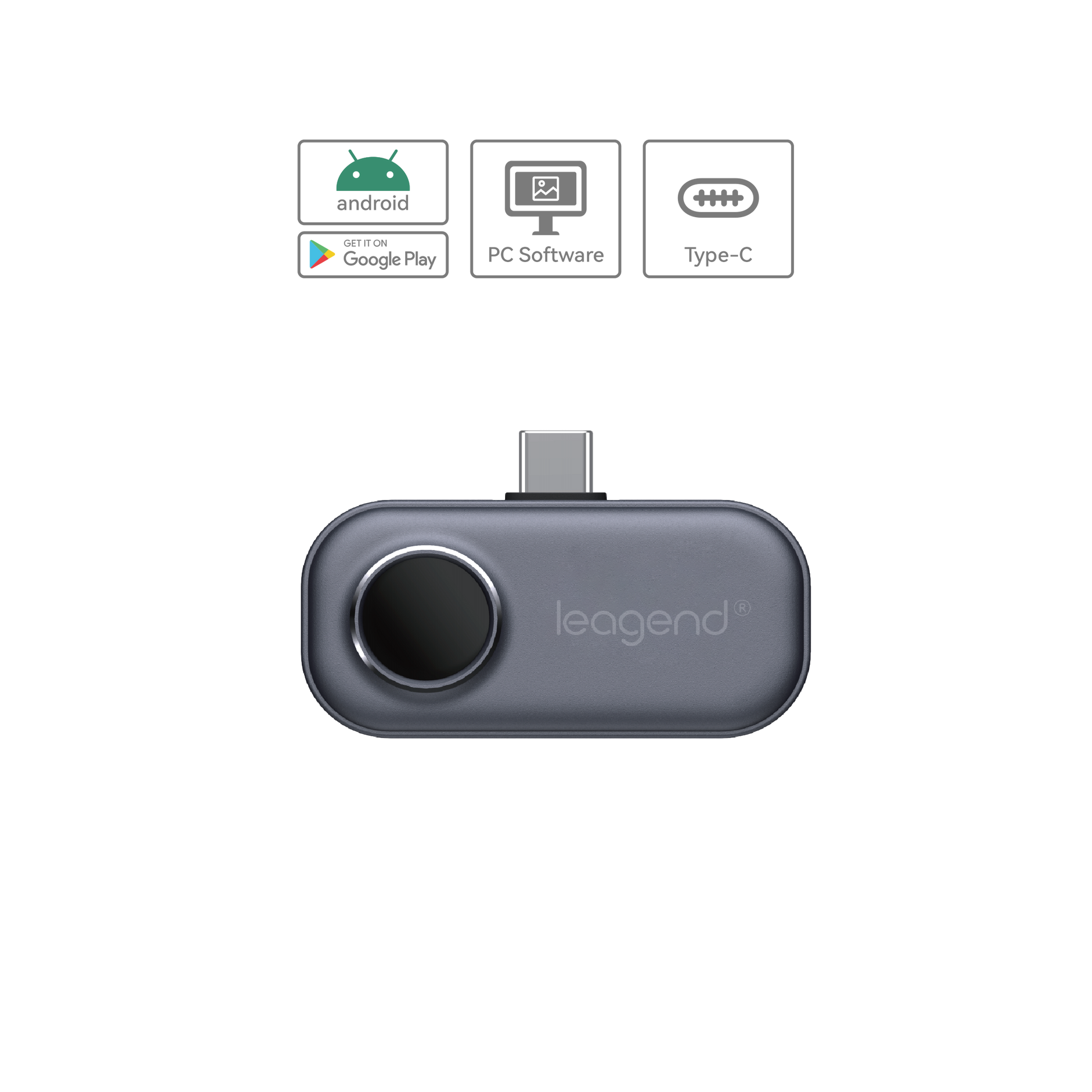

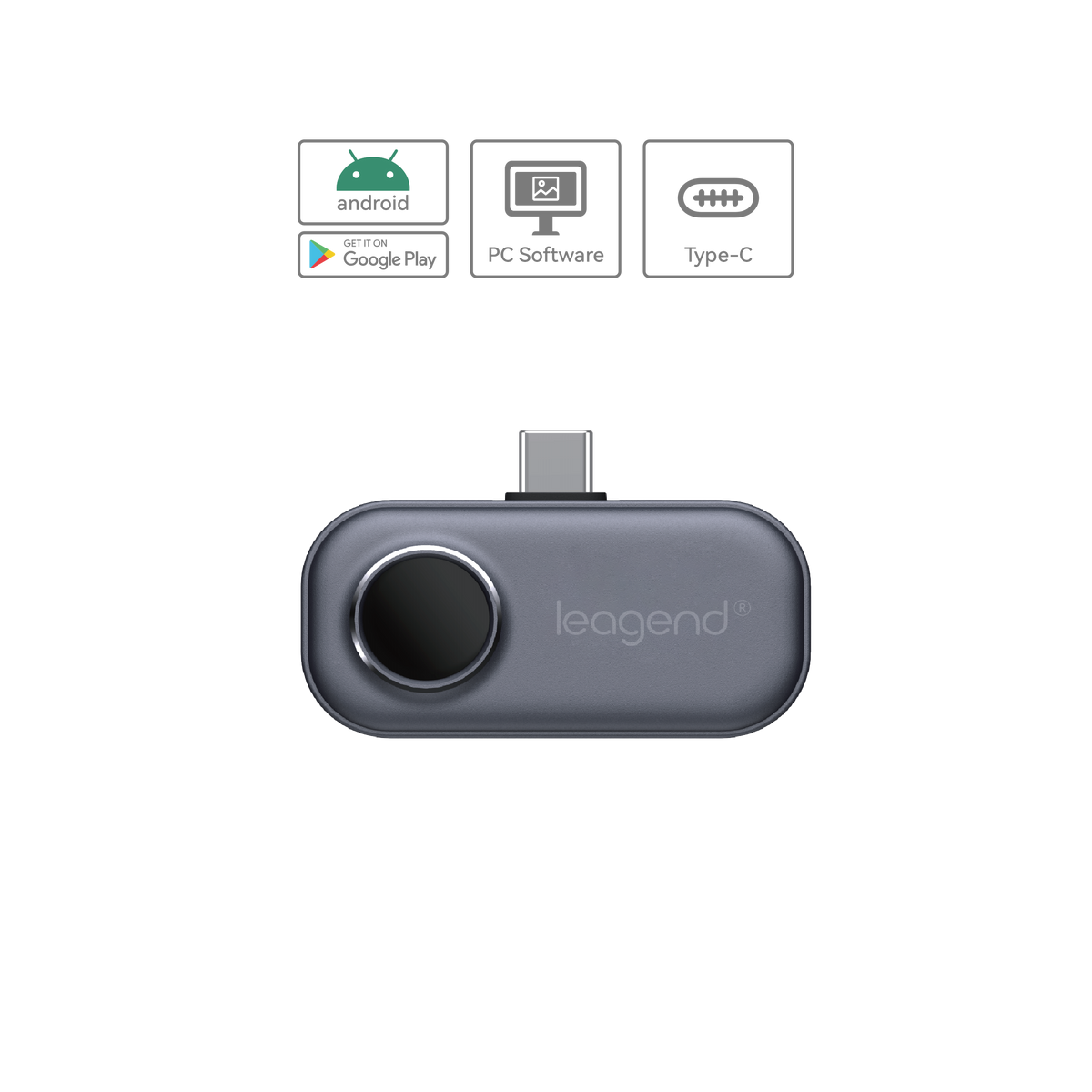

leagend TC101 Thermal Imaging Camera for Android
Regular price
$219.99 USD
Regular price
$200.00 USD
Sale price
$219.99 USD
Unit price
per
Shipping calculated at checkout.
Overview
The leagend TC101ย is a compact thermal imaging camera for Android devices that turns your smartphone or tablet into a powerful infrared inspection tool. With 256ร192 thermal resolution, a 25Hz real-time frame rate, and a temperature measurement range of -20ยฐC to 550ยฐC (-4ยฐF to 1022ยฐF), leagend TC101 helps you quickly visualize heat differences and find potential problems that ordinary cameras cannot see.
From checking your car and electrical equipment to inspecting your home, workshop, outdoor gear, or mechanical systems, leagend TC101ย makes thermal inspection more accessible, portable, and practical for everyday users.
Key Features

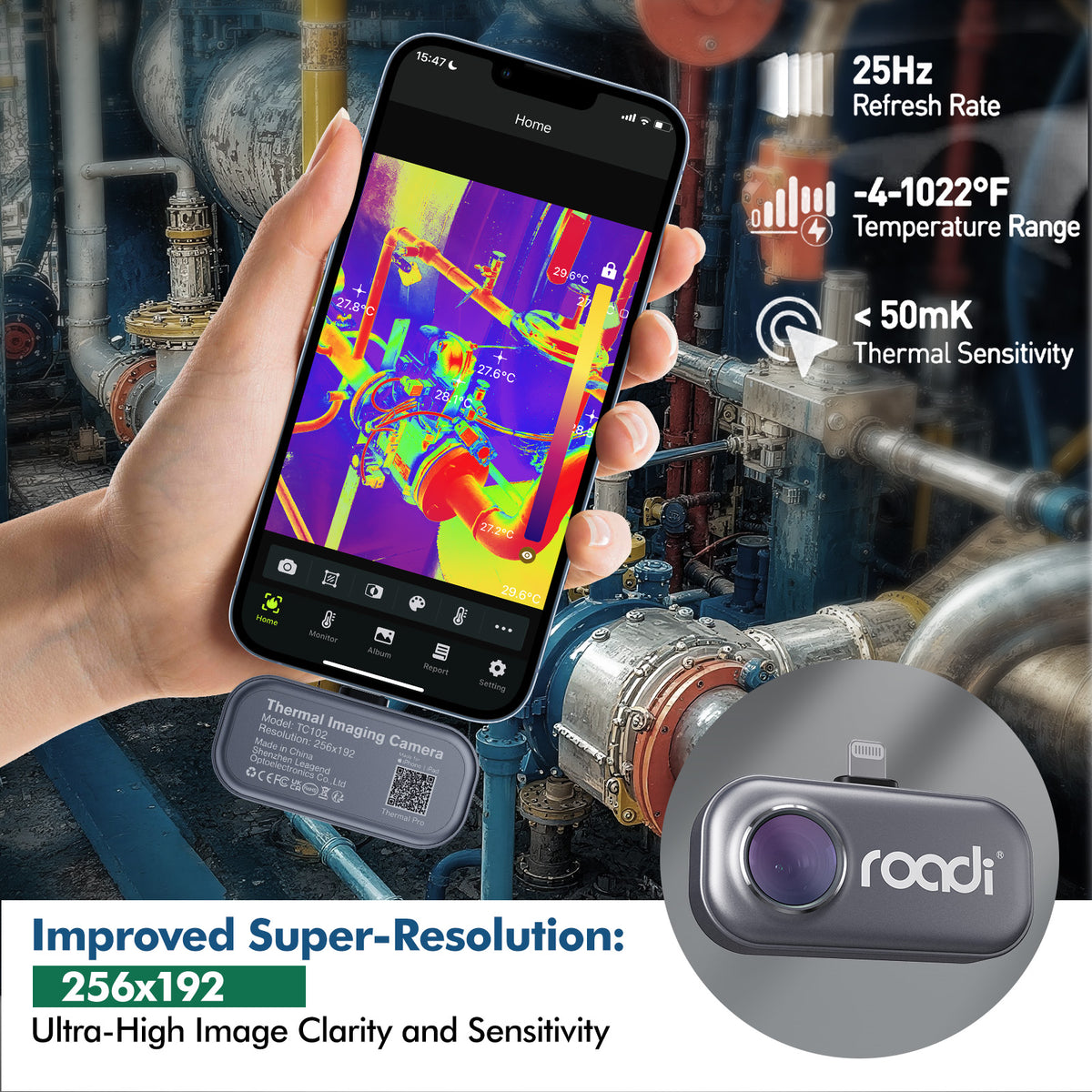

256ร192 High-Resolution Thermal Imaging
- See more thermal description with a 256ร192 infrared resolution. The high-resolution thermal image makes it easier to identify hot spots, cold areas, heat loss, and temperature differences in the objects you are inspecting.
25Hz Real-Time Thermal Imaging
- With a 25Hz image frame rate, leagend TC101 provides smooth, responsive thermal images for moving scenes and real-time inspection.
Wide Temperature Measurement Range
- Measure temperatures from -20ยฐC to 550ยฐC (-4ยฐF to 1022ยฐF), making leagend TC101 suitable for a wide variety of everyday inspection and troubleshooting applications.
Detect Temperature Changes as Small as 0.1ยฐC
- leagend TC101 can detect temperature differences down to 0.1ยฐC, helping you identify subtle thermal changes that may be difficult to notice with the naked eye.

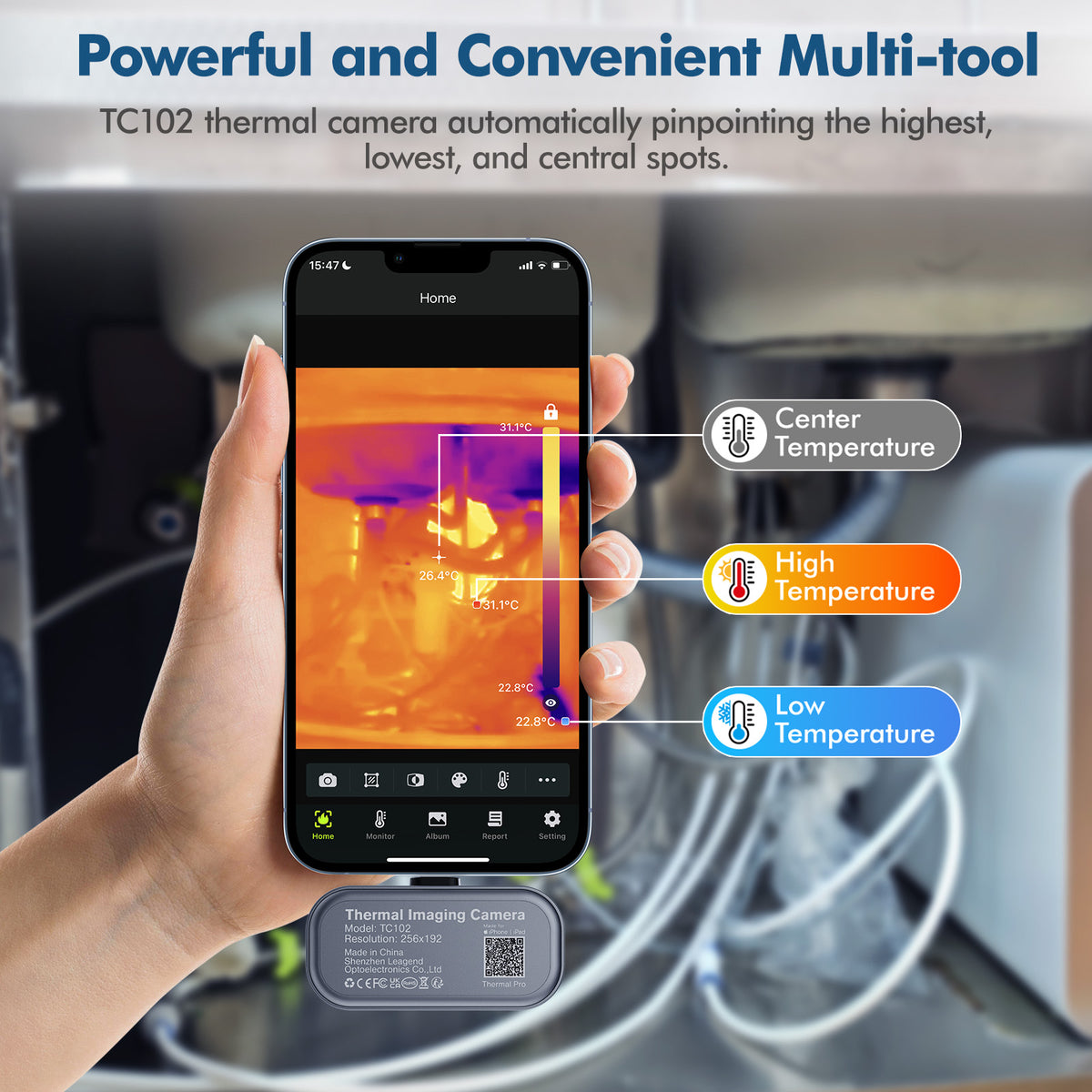

Point, Line & Area Temperature Measurement
- Measure temperatures directly on the thermal image. You can select points, lines, or areas to monitor temperature changes and better understand where heat is concentrated.
Multiple Thermal Display Modes
- Switch between different visualization modes, including thermal imaging, thermal/visible-light fusion, and picture-in-picture, to make it easier to understand what you are seeing.
High & Low Temperature Alarms
- Set customized temperature thresholds and receive visual or audible alerts when temperatures reach the specified high or low limits. This makes it easier to identify abnormal heat during inspections.
Real-Time Temperature Waveform Monitoring
- Monitor temperature changes over time with real-time waveform analysis. This is useful when you want to observe whether a component, surface, or system is heating up or cooling down.
Capture Photos & Record Thermal Videos
- Capture thermal images or record videos while inspecting. Thermal monitoring videos can also be saved for later review and comparison.
Generate PDF Inspection Reports
- Create temperature measurement analysis reports from captured thermal images. PDF reports can be generated and shared, making it easier to document inspections, troubleshooting results, or maintenance findings.

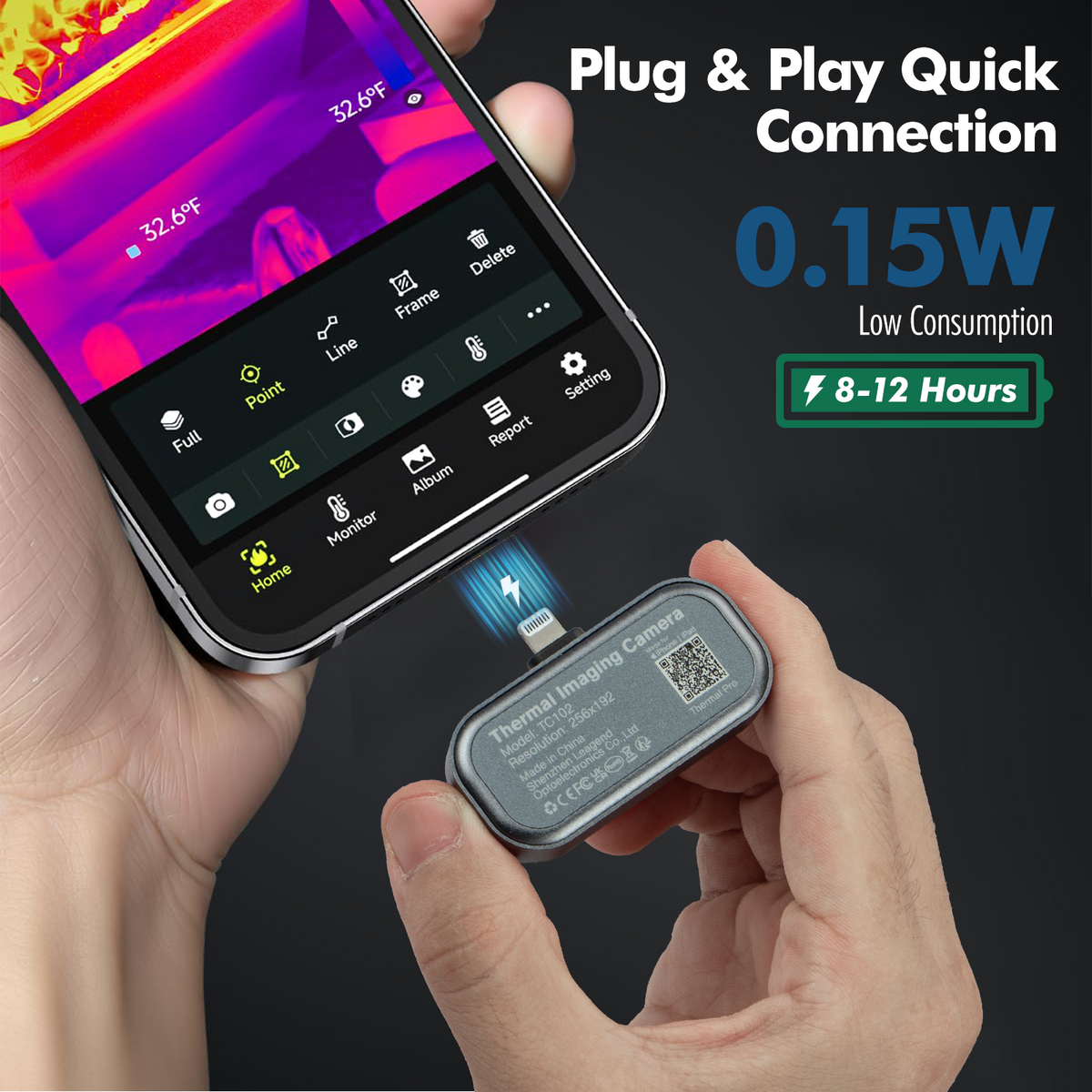

Compact Android Thermal Imager
- leagend TC101 connects with compatible Android devices to provide a portable thermal imaging solution without requiring a separate dedicated thermal imaging display.
Specifications
Sensor
Uncooled Vanadium Oxide
Emissivity
0.95 (Default), Adjustable From 0.01 To 1.00
Spectral Range
8~14um
Resolution
256x192
Pixel Size
12um
Field Of View
56ยฐx42ยฐ
Image Frame Rate
25Hz
IFOV(Instantaneous Field Of View)
3.75Mrad
Focal Length
3.2mm
Couldn't load pickup availability
FAQ
leagend TC101 is a compact thermal imaging camera designed for compatible Android devices. It uses an uncooled vanadium oxide infrared sensor to capture thermal images with 256ร192 resolution and a 25Hz frame rate.
leagend TC101 supports temperature measurement from -20ยฐC to 550ยฐC (-4ยฐF to 1022ยฐF), making it suitable for a wide range of automotive, household, electrical, mechanical, and DIY inspections.
leagend TC101 can detect temperature changes as small as 0.1ยฐC, helping users identify relatively subtle differences in thermal patterns.
Yes. The TC101 system supports temperature measurement using points, lines, and areas on the thermal image. Users can select specific locations or regions to examine temperature information.
Yes. leagend TC101 supports real-time thermal image capture and video recording. Thermal monitoring videos can also be saved for later playback and analysis.

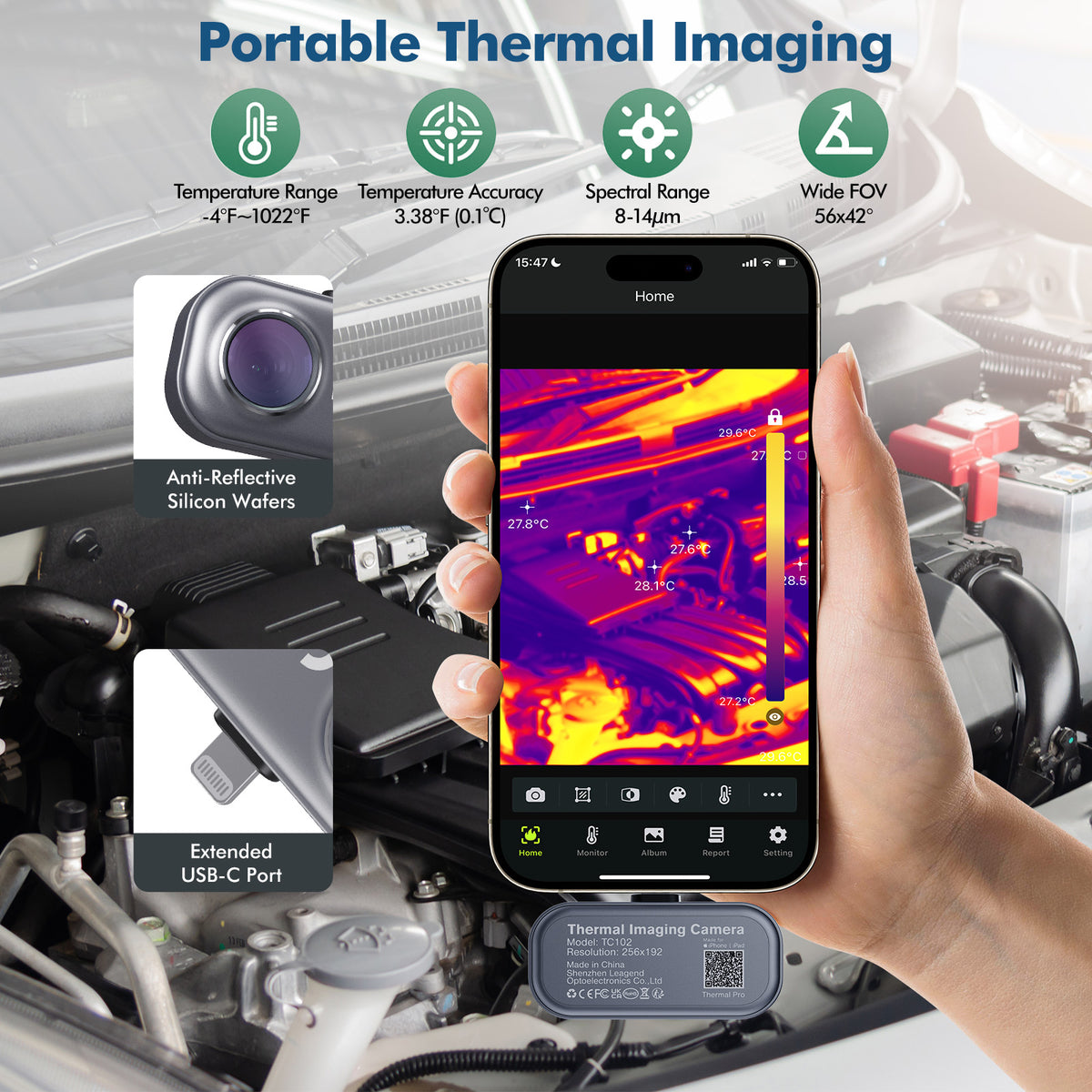

Yes. leagend TC101 is suitable for automotive inspection and can help you visualize abnormal heat patterns around components such as engines, brakes, electrical connections, batteries, and cooling systems. Thermal imaging should be used as an inspection aid rather than as a substitute for professional diagnosis.

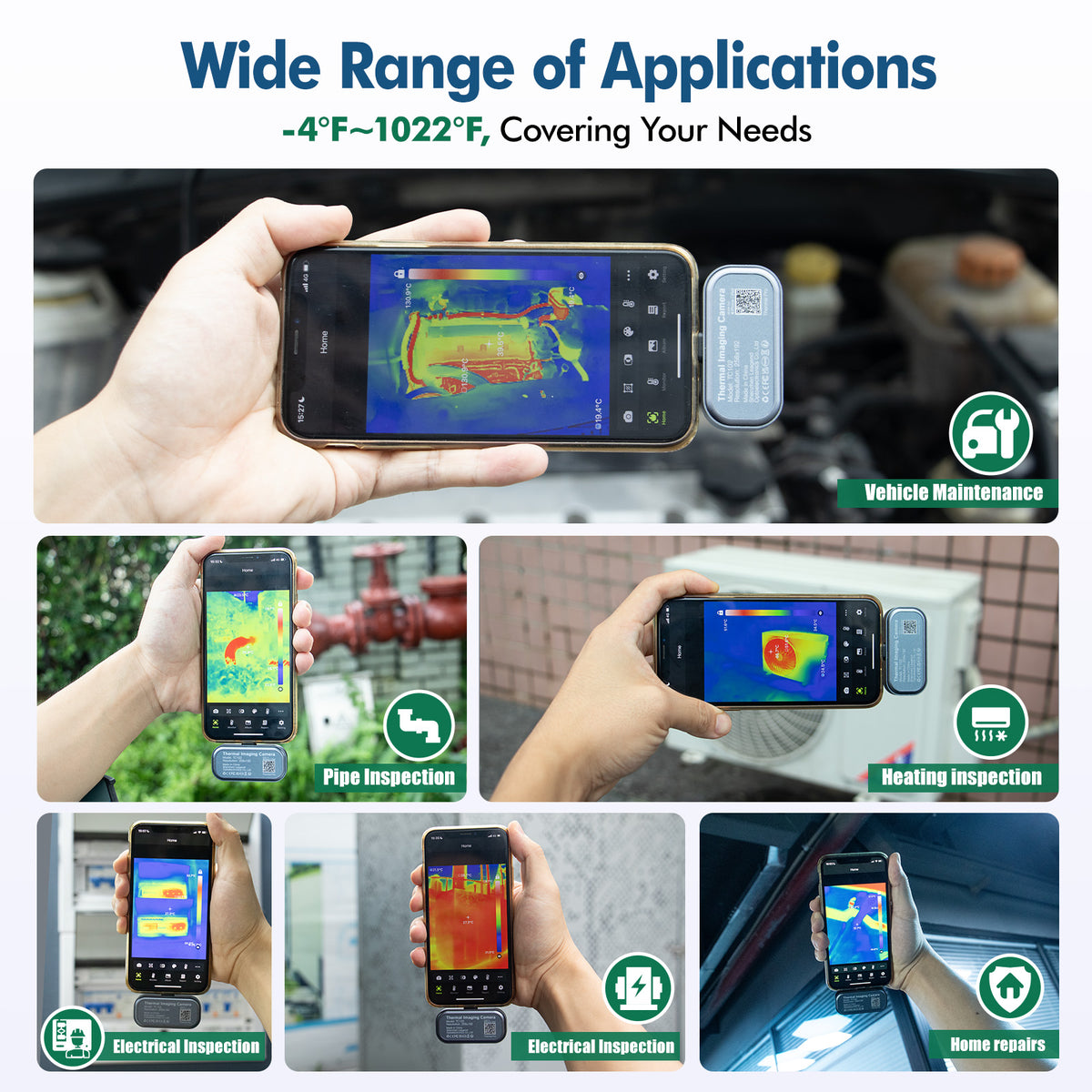

Yes. You can use leagend TC101 to investigate temperature differences around areas such as windows, doors, walls, HVAC equipment, pipes, radiators, and electrical components.
Yes. The TC101 system supports customizable high- and low-temperature alarms, allowing users to set temperature thresholds and receive alerts when the measured temperature reaches those limits.
Yes. leagend TC101 supports thermal imaging, thermal/visible-light fusion, and picture-in-picture modes, helping users better understand the location and context of thermal patterns.
Yes. The system supports generating PDF temperature measurement analysis reports from captured thermal images, which can then be shared for documentation or further analysis.
leagend TC101 uses an uncooled vanadium oxide (VOx) infrared sensor with a 256ร192 resolution.
leagend TC101 provides a 25Hz thermal image frame rate, allowing smooth real-time thermal imaging.
leagend TC101 is designed to make thermal imaging more accessible and portable for everyday users, DIY enthusiasts, vehicle owners, and technicians. For safety-critical applications or professional certification, users should follow appropriate professional inspection procedures and use certified equipment where required.
