iOS Thermal Imager
TC102

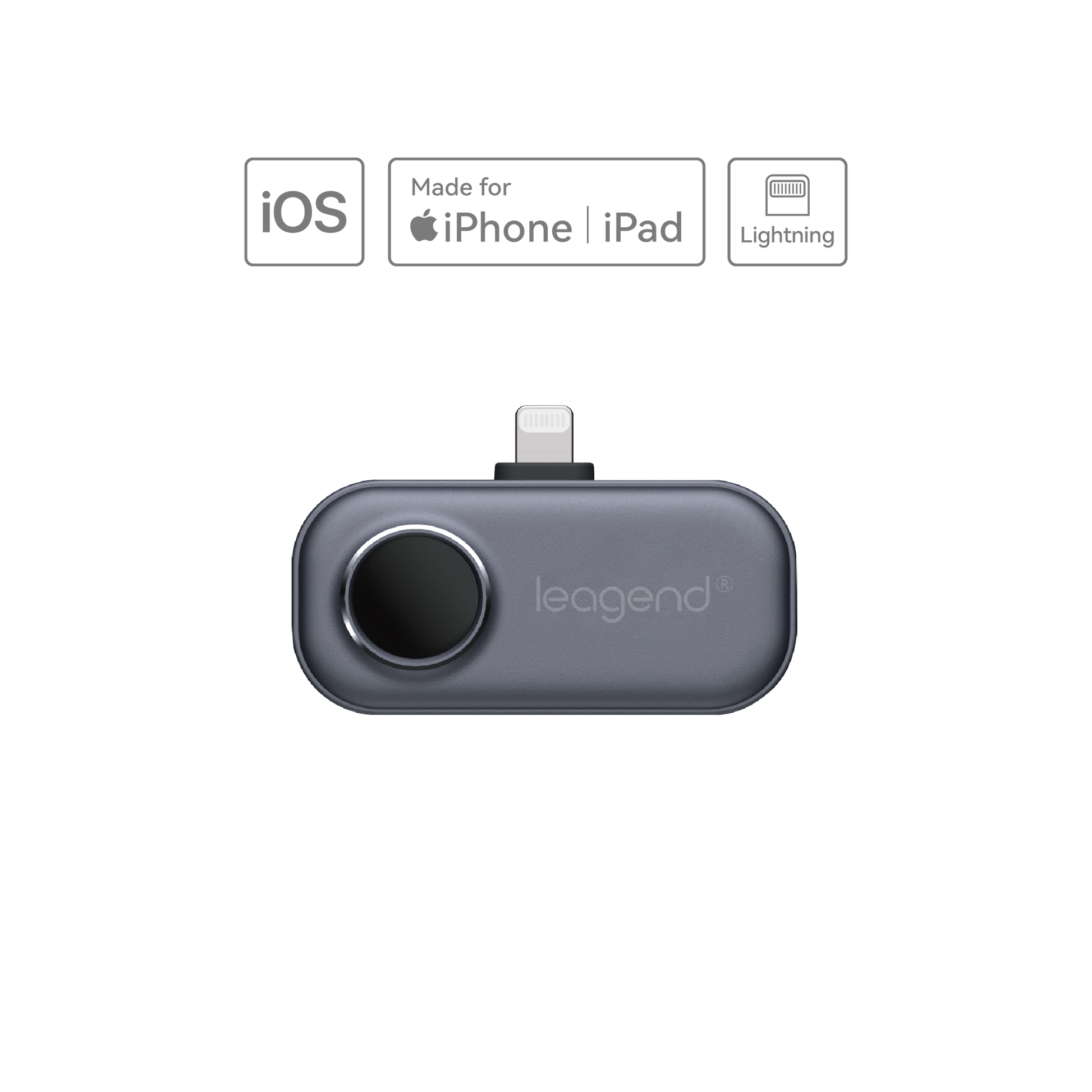

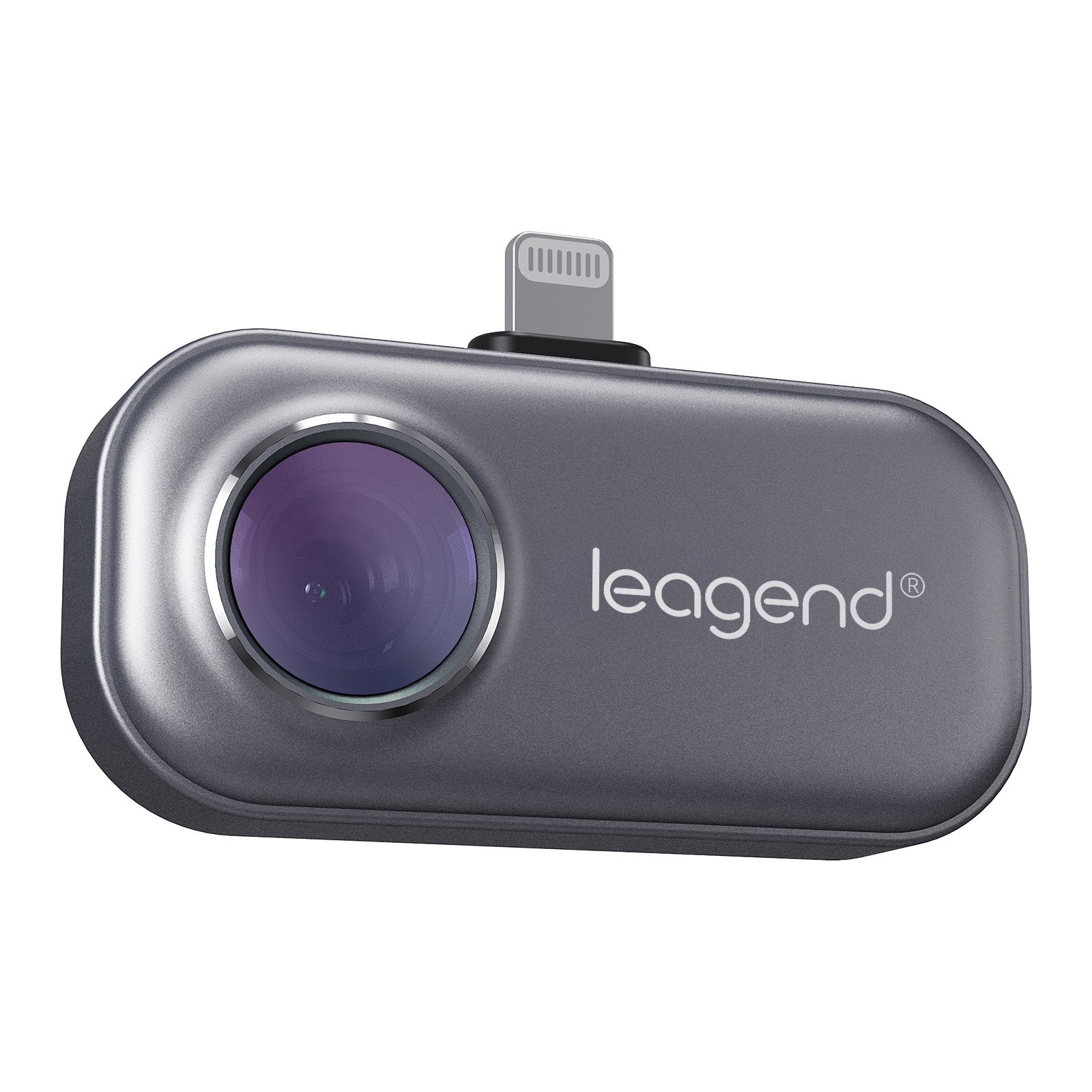

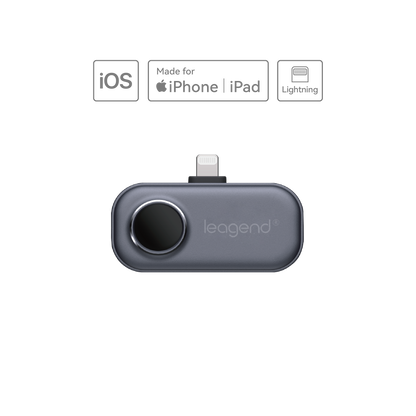

leagend TC102 — High-Resolution Thermal Imaging Camera for iPhone

$219.00 USD
$220.00 USD $219.00 USD
Sale Sold out
Shipping calculated at checkout.

Overview

The leagend TC102 is a high-resolution thermal imaging camera for iPhone and compatible iOS devices, turning your phone into a practical infrared thermal camera for everyday inspection and troubleshooting. With 256 × 192 thermal resolution, a 25Hz frame rate, and a -20°C to 550°C (-4°F to 1022°F) measurement range, leagend TC102 helps you quickly see temperature differences that are invisible to the naked eye.

Whether you're checking an electrical panel, finding heat loss, inspecting HVAC systems, locating heating pipes, or exploring your home, leagend TC102 makes thermal imaging simple, portable, and easy to understand.

Key Features

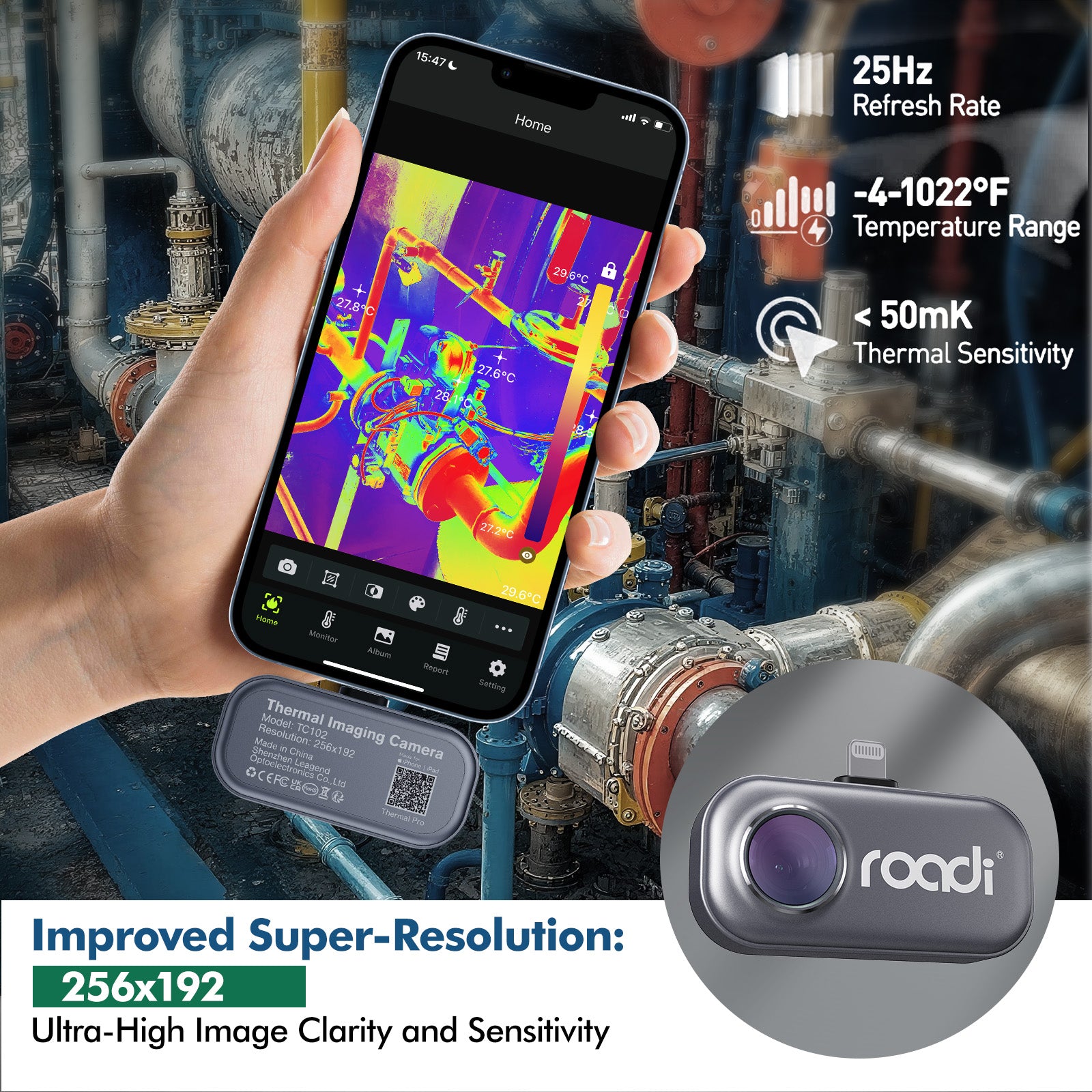

High-Resolution 256 × 192 Thermal Imaging

  • See more thermal description with a 256 × 192 infrared resolution and a 25Hz real-time frame rate. leagend TC102 provides smooth thermal images, making it easier to identify unusual hot and cold areas.

Wide Temperature Measurement Range

  • Measure temperatures from -20°C to 550°C (-4°F to 1022°F) for a wide range of household, automotive, electrical, HVAC, and DIY inspection tasks.
  • The camera can detect temperature changes as small as 0.1°C, helping you identify subtle temperature differences that may indicate a potential problem.

Real-Time Thermal Imaging, Photos & Video

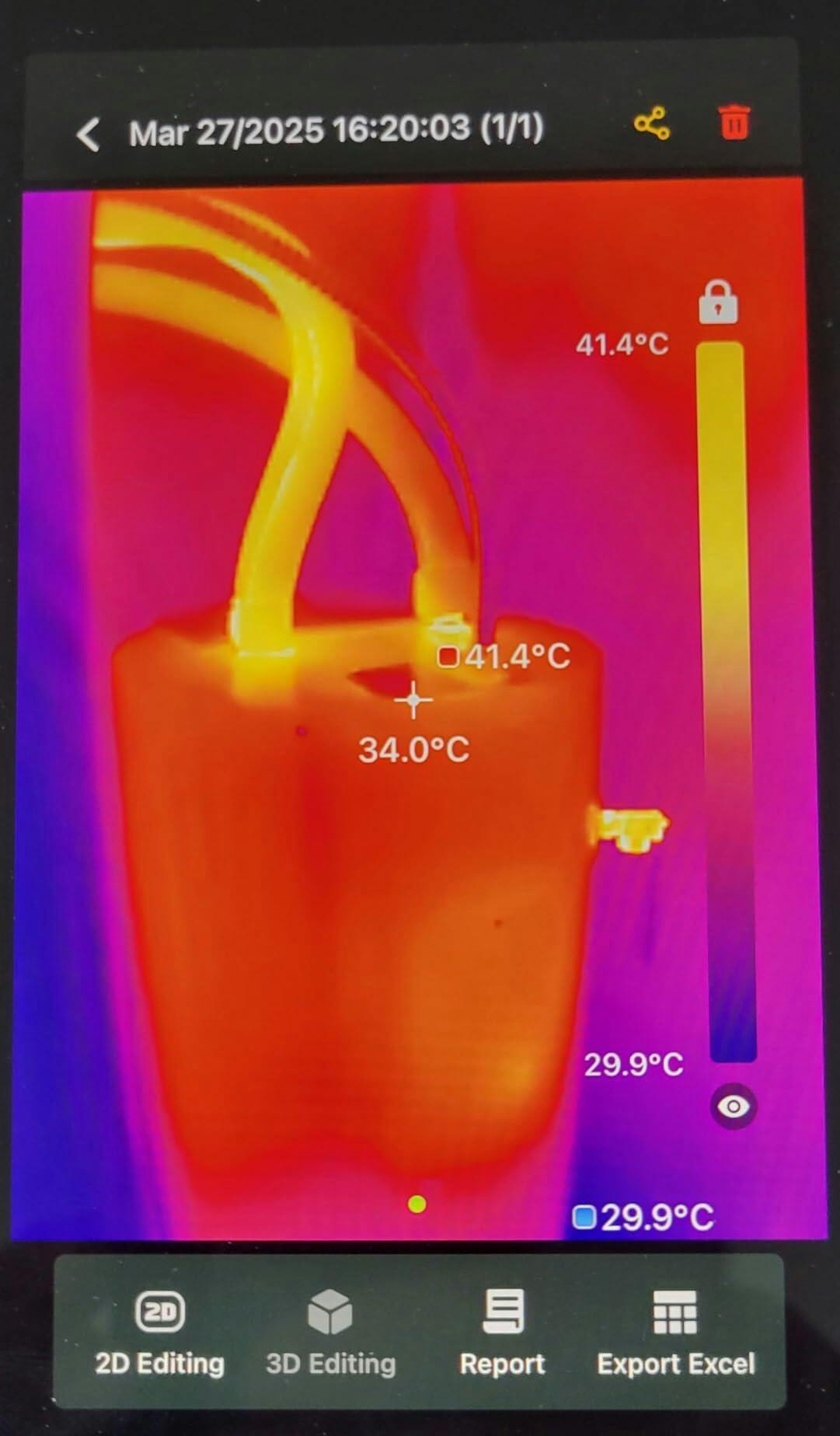

  • Use your iPhone or iOS device to view thermal images in real time, capture photos, and record thermal videos.
  • leagend TC102 can also automatically save temperature-monitoring videos, allowing you to review changes over time instead of relying only on a single thermal image.

Measure Temperature Where It Matters

  • Monitor temperatures using customizable point, line, and area measurements.

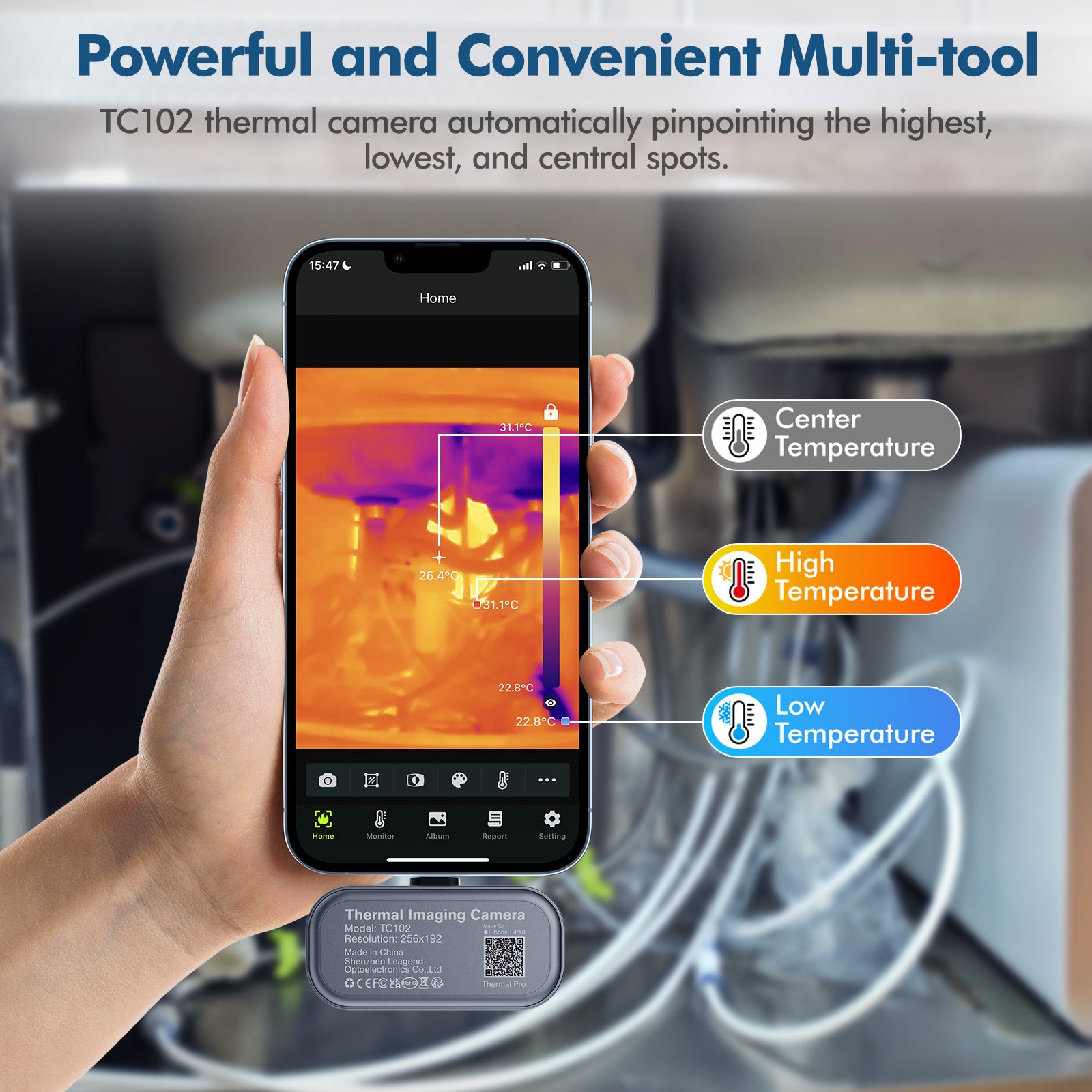

  • You can display maximum, minimum, and center temperature values at selected locations on the thermal image, making it easier to compare different areas and identify abnormal temperatures.

Multiple Thermal Imaging Modes

  • Choose the viewing mode that best fits your inspection:
  • Thermal imaging
  • Thermal/visible-light fusion
  • Picture-in-picture
  • These modes combine infrared and visible-light information to help you understand exactly where a temperature difference is located.

Custom High- and Low-Temperature Alarms

  • Set your own high- or low-temperature alarm thresholds.
  • When a monitored temperature reaches your selected limit, leagend TC102 can provide a real-time sound or light alarm, helping you notice potential temperature problems faster.

Real-Time Temperature Waveform Monitoring

  • Track temperature changes with real-time waveform monitoring.
  • Set measurement points, lines, or areas to observe how temperatures change over time—useful for troubleshooting heating, cooling, electrical, and mechanical problems.

Create Professional Thermal Analysis Reports

  • Turn your thermal images into useful inspection records.
  • leagend TC102 supports temperature analysis reports and PDF report generation, and reports can be shared directly from your device. Temperature data can also be exported for further analysis.

Adjustable Emissivity for More Flexible Measurements

  • The emissivity setting is adjustable from 0.01 to 1.00, with 0.95 as the default value, giving users greater flexibility when measuring different materials and surfaces.

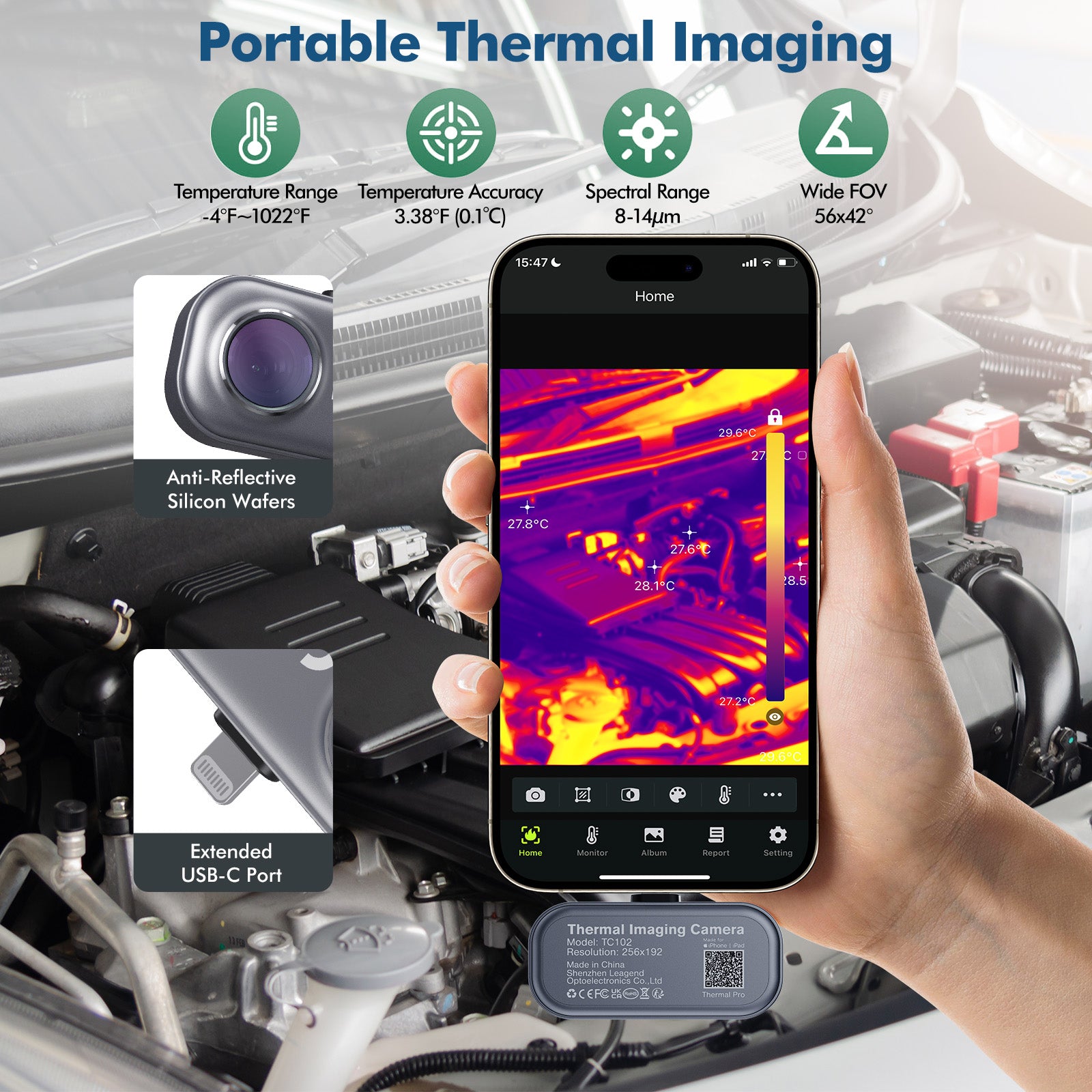

Specifications

Sensor
Uncooled Vanadium Oxide
Emissivity
0.95 (Default), Adjustable From 0.01 To 1.00
Spectral Range
8~14um
Resolution
256x192
Pixel Size
12um
Field Of View
56°x42°
Image Frame Rate
25Hz
IFOV(Instantaneous Field Of View)
3.75Mrad
Focal Length
3.2mm

FAQ

leagend TC102 is a high-resolution thermal imaging camera designed for iPhone and compatible iOS devices. It uses an infrared sensor to visualize temperature differences and supports thermal images, video recording, temperature measurement, alarms, waveform monitoring, and thermal analysis reports.

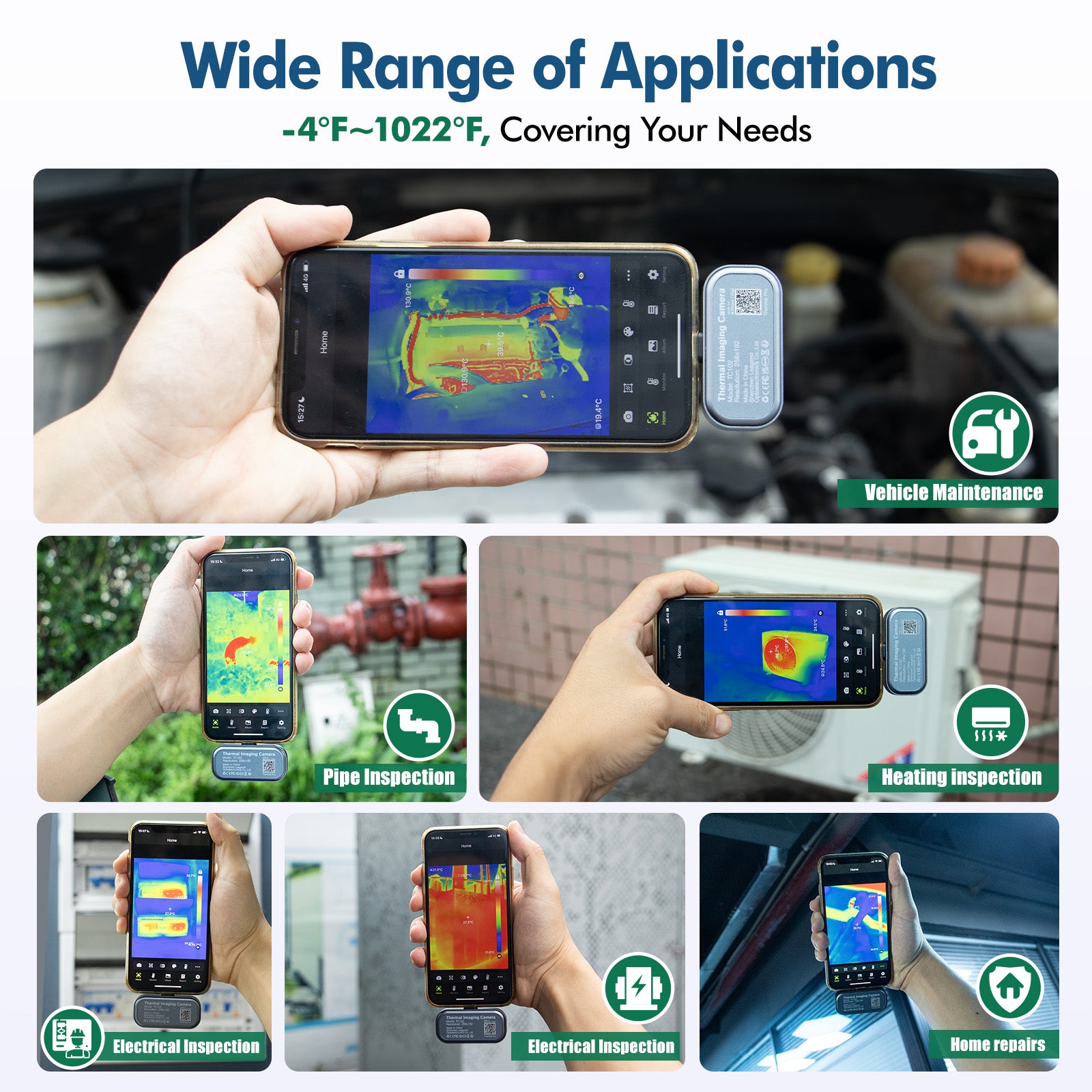

You can use leagend TC102 for home inspection, electrical troubleshooting, HVAC inspection, heating and plumbing checks, automotive troubleshooting, DIY projects, and other applications where identifying temperature differences is useful.
leagend TC102 can detect temperature changes as small as 0.1°C and measures temperatures across a range of -20°C to 550°C (-4°F to 1022°F). Actual measurement accuracy can vary depending on the material, surface emissivity, distance, environmental conditions, and measurement setup.
Yes. leagend TC102 supports real-time thermal video recording and can automatically save temperature-monitoring videos. Recorded videos can be played back for later analysis.
Yes. leagend TC102 allows you to define points, lines, and surface areas on the thermal image. You can monitor selected areas and display maximum, minimum, and center temperature values.
Yes. You can customize high- and low-temperature alarm thresholds. The system supports real-time sound and light alarms to help alert you when temperatures reach your selected limits.
Yes. You can select thermal images from your album and generate PDF temperature analysis reports. Reports can also be shared from your device.
leagend TC102 supports thermal imaging, thermal/visible-light fusion, and picture-in-picture modes, allowing you to choose the visualization method that works best for your inspection.
Yes. Thermal imaging can reveal temperature differences created by heating or hot-water pipes, making leagend TC102 useful for locating and inspecting heating systems.
Yes. leagend TC102 is designed to be practical for everyday inspection and troubleshooting. Homeowners can use it to investigate heat loss, heating systems, electrical areas, appliances, pipes, and other temperature-related issues.
Yes. Its 256 × 192 resolution, 25Hz frame rate, configurable measurement areas, temperature alarms, waveform monitoring, video recording, and PDF reporting make leagend TC102 suitable for a range of professional inspection and maintenance tasks.
Emissivity describes how effectively a surface emits infrared radiation. Because different materials can have different emissivity values, leagend TC102 allows emissivity adjustment from 0.01 to 1.00, with 0.95 as the default setting, to help users obtain more appropriate temperature readings.
