leagend TC810 Automotive Thermal Night Vision System
Regular price
$250.00 USD
Regular price
$500.00 USD
Sale price
$250.00 USD
Unit price
per
Shipping calculated at checkout.
Overview

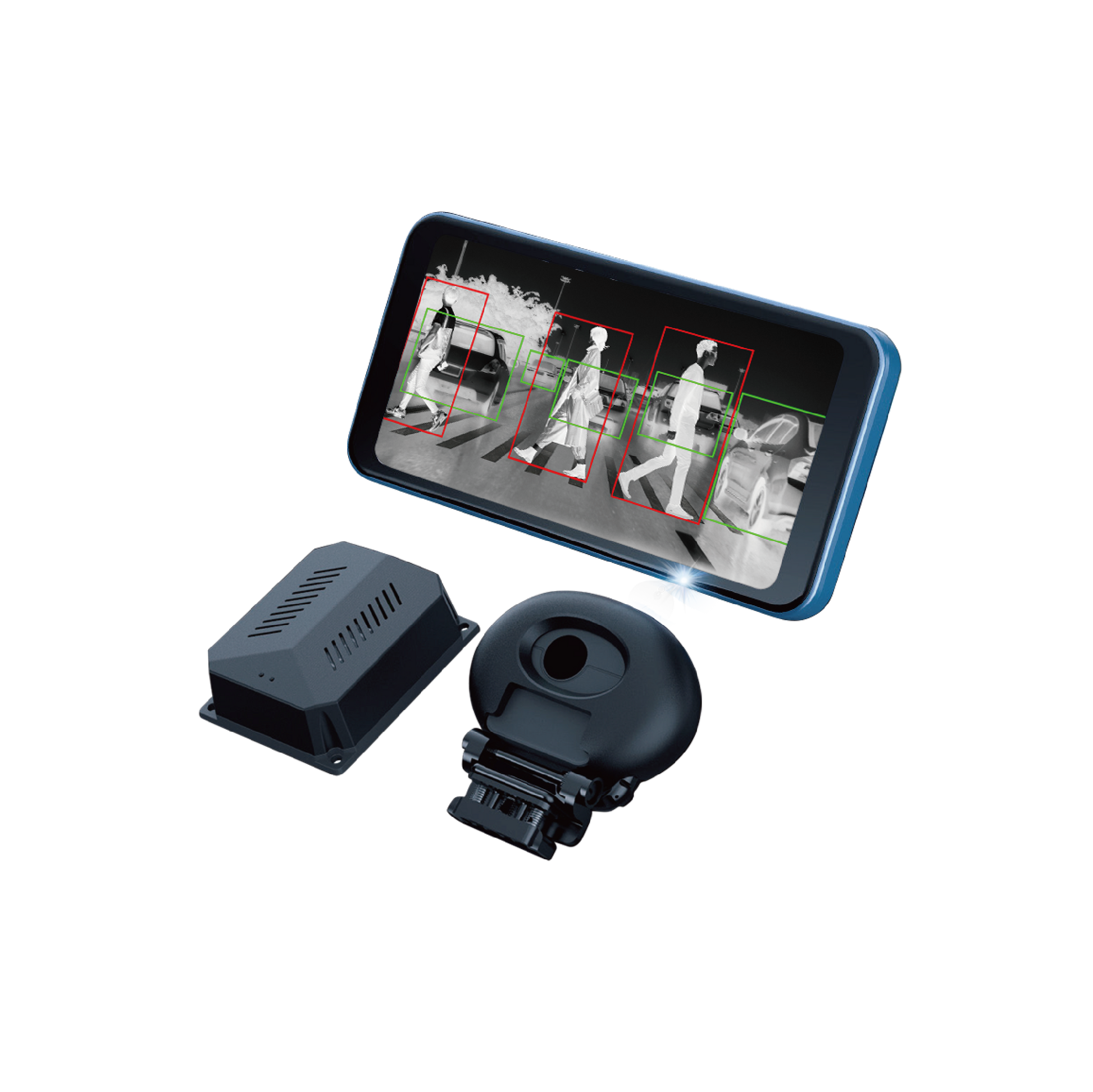

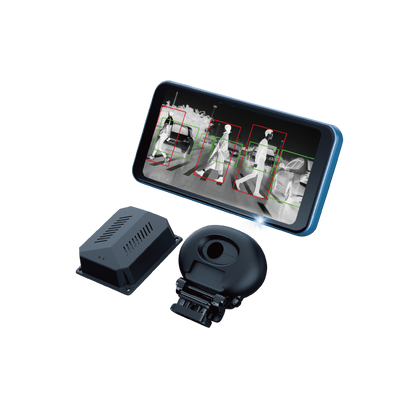

The Car Night Visionย system (TC810) is designed for aftermarket and retrofit applications, typically found in luxury vehicles like Rolls-Royce, Mercedes-Benz S-Class, BMW 7 Series, and Audi A8. This automotive infrared thermal imaging system improves driving safety in low-visibility conditions such as darkness, fog, rain, snow, or glare. With a built-in AI algorithm, it can quickly and accurately detect pedestrians, vehicles, and riders with a recognition rate exceeding 92%. The system provides clearer and more detailed high-quality images, making it easier for drivers to navigate safely at night. Itโs easy to install and compatible with various car models, offering cost-effective solutions.
Key Features
See Heat, Not Just Light
- The leagend TC810 detects heat signatures rather than relying only on visible light. This helps reveal people, vehicles, animals, and other objects when conventional headlights or natural visibility are limited.
256ร192 High-Resolution Thermal Imaging
- The leagend TC810 uses a 256ร192 thermal imaging sensor with a 12ฮผm pixel pitch and 25Hz refresh rate to provide a stable and descriptioned thermal view of the road ahead.
AI-Powered Road Hazard Detection
- Built-in AI technology helps recognize important road objects, including pedestrians, vehicles, and riders. With a recognition rate exceeding 92%, leagend TC810 can provide visual and sound alerts to help draw your attention to potential hazards sooner.
Designed for Night and Low-Visibility Driving
- Whether you are driving on an unlit road at night or dealing with fog, rain, snow, or glare, leagend TC810 provides an additional layer of visual information beyond conventional headlights.
Smart App Connectivity
- Connect leagend TC810 through 2.4GHz Wi-Fi and use the companion app to adjust key settings, including AI recognition, alert distance, rain mode, HUD display, and language.
Easy Installation and Flexible Use

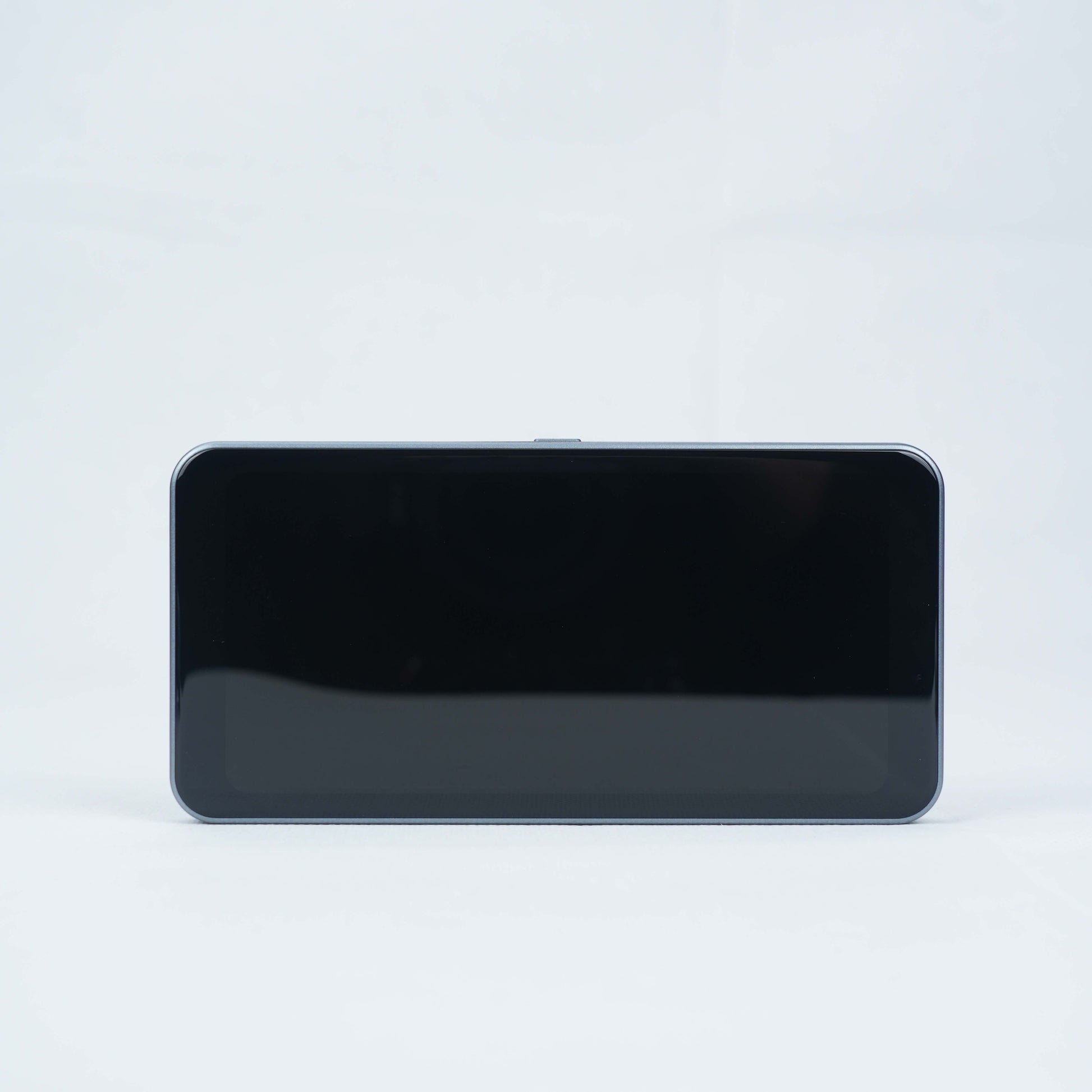

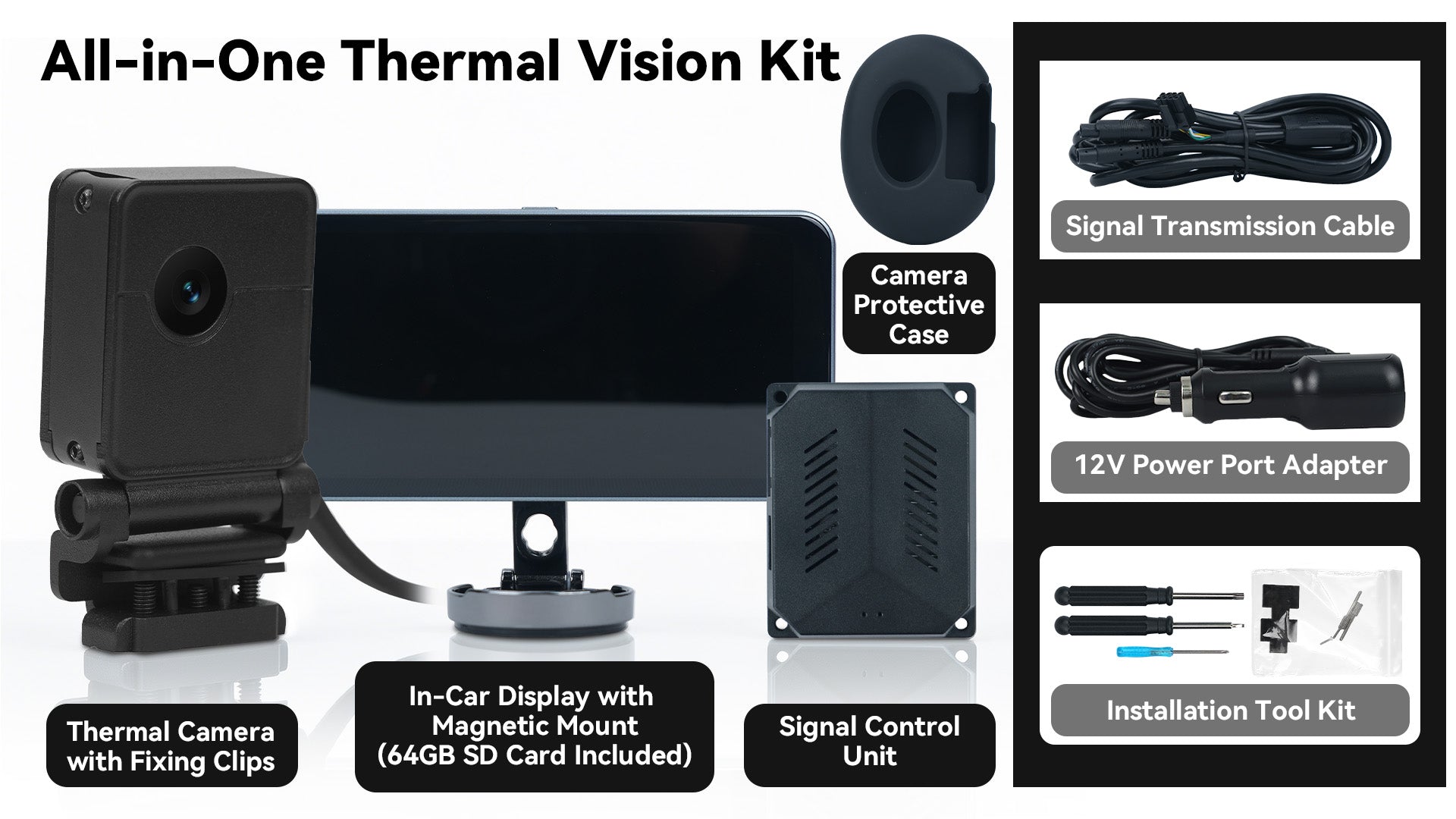

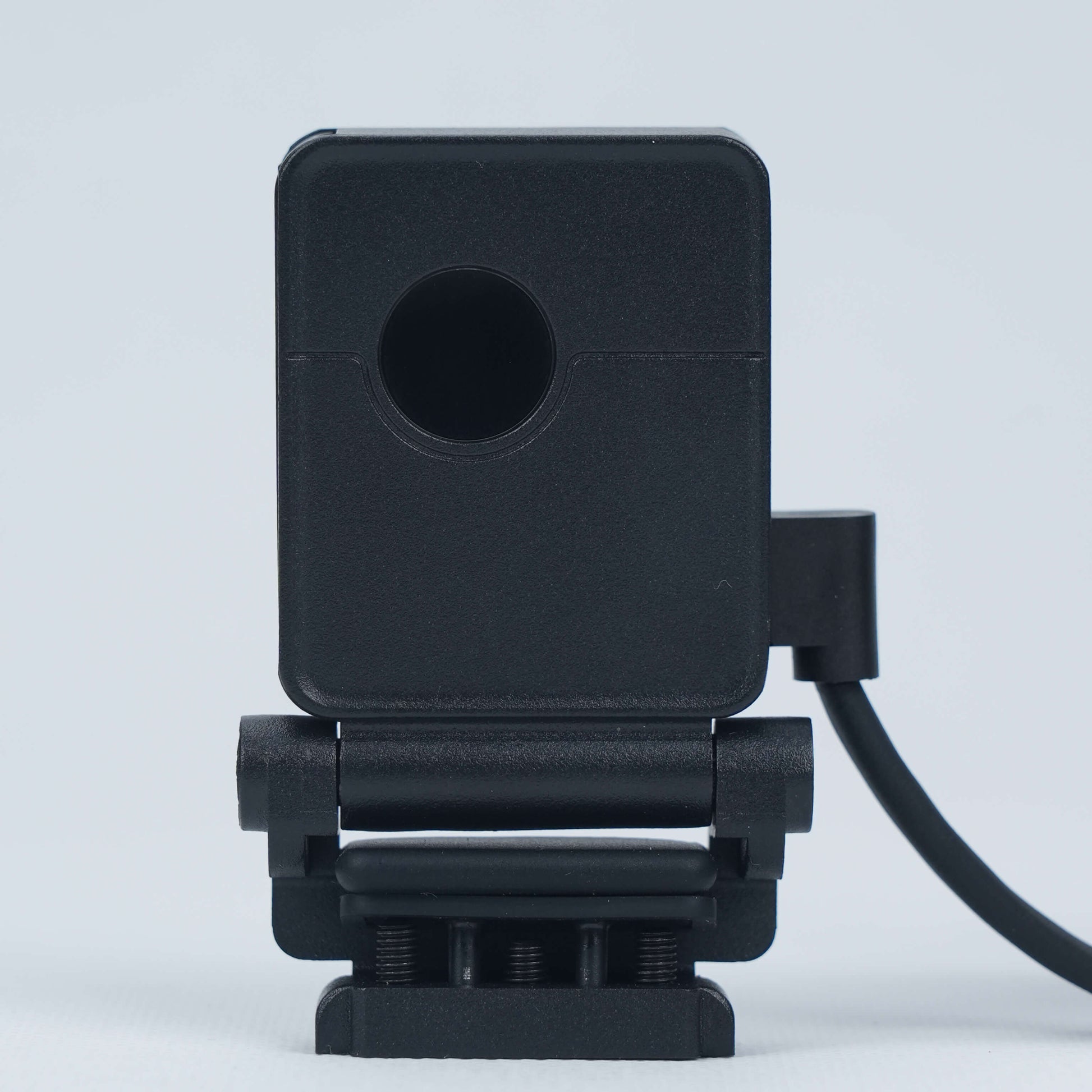

- The leagend TC810 is designed for aftermarket and retrofit applications. The thermal camera mounts at the front of the vehicle, while the display uses a magnetic design for convenient setup and removal.
Built for Real-World Driving Conditions
- With IP67 protection and an operating temperature range of โ20ยฐC to 70ยฐC (-4ยฐF to 158ยฐF), leagend TC810 is designed to perform in a wide range of outdoor driving conditions.
Wide 40ยฐ ร 30ยฐ Field of View
- The 40ยฐ horizontal ร 30ยฐ vertical field of view provides a broad thermal perspective to help drivers monitor the road and surroundings.
Specifications
Power supply
Rated 12V power supply
Thermal imaging pixel pitch
12um
Operating temperature
-20โ~70โ (-4โ~158โ)
Storage temperature
-40โ~85โ (-40โ~185โ)
Field of view
40ยฐ(H)ร30ยฐ(V)
Focal length
4.3mm
Aperture
F1.1
Processor
Self-developed chip
Thermal imaging resolution
256ร192
Couldn't load pickup availability
FAQ
The leagend TC810 is an automotive thermal night vision system designed for aftermarket and retrofit use. It uses an infrared thermal camera to detect heat signatures and display a thermal view of the road, helping drivers identify pedestrians, vehicles, riders, animals, and other potential hazards in low-visibility conditions.
The leagend TC810 detects infrared radiation emitted by objects based on their heat signatures. Instead of depending entirely on visible light, the thermal camera converts differences in heat into an image that can be displayed to the driver.
Yes. Because the leagend TC810 uses thermal imaging rather than conventional visible-light imaging, it can detect heat signatures in darkness. However, actual detection performance can vary depending on the size, temperature, distance, weather, road conditions, and other environmental factors.
Yes. The AI system of the leagend TC810 is designed to recognize road objects such as pedestrians, vehicles, and riders. Thermal imaging can also help make animals more noticeable in dark or poorly lit environments.
The leagend TC810 is designed to provide additional visibility in challenging conditions such as fog, rain, snow, and glare. However, severe weather can still affect thermal imaging performance, so drivers should always adjust their speed and driving behavior to road and weather conditions.
The leagend TC810 features a 256ร192 thermal imaging resolution, a 12ฮผm pixel pitch, and a 25Hz refresh rate, providing a stable thermal image for automotive applications.
Yes. The leagend TC810 supports 2.4GHz Wi-Fi connectivity and app-based settings. Users can customize functions such as AI recognition, alert distance, rain mode, HUD display, and language.
The leagend TC810 features IP67 protection, making it suitable for outdoor vehicle installation and exposure to normal wet-weather conditions.
The leagend TC810 has an operating temperature range of โ20ยฐC to 70ยฐC (-4ยฐF to 158ยฐF) and a storage temperature range of โ40ยฐC to 85ยฐC (-40ยฐF to 185ยฐF).
The leagend TC810 is designed for aftermarket and retrofit applications. The camera mounts at the front of the vehicle, while the display uses a magnetic design for convenient installation and removal. Installation requirements may vary depending on the vehicle.
No. The leagend TC810 is an additional driver-assistance and visibility tool. It should be used together with the vehicle's headlights, mirrors, cameras, and other original safety systems. Drivers should always remain attentive and follow applicable traffic laws.
The leagend TC810 is designed for a wide range of aftermarket and retrofit vehicle applications. Compatibility can depend on the vehicle's installation space, power supply, mounting position, and desired display configuration. Please check the installation requirements before purchasing.
