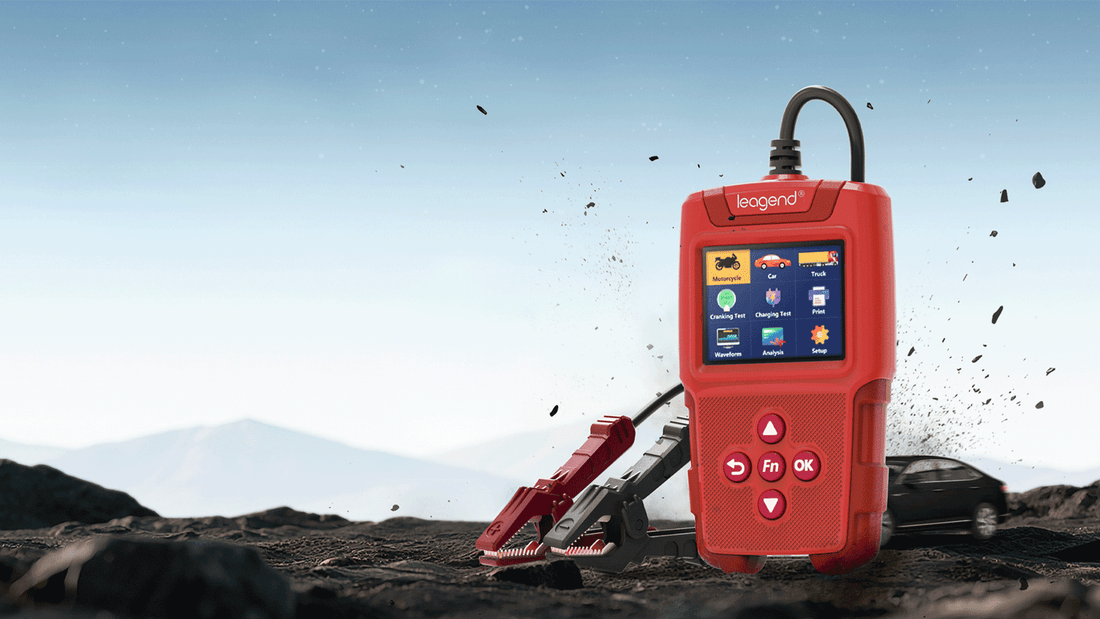

Leagend BA640 Review: Why This Battery Tester Became My Go-To Tool

I’m a DIY car guy who also helps friends with their vehicles on weekends. Over the years I’ve burned money on cheap battery testers—some gave flaky readings, others worked only on basic 12V car batteries, and one even shorted when I accidentally reversed the clamps. I was about to give up on budget testers—until I tried the Leagend BA640. After roughly four months of steady use, it’s now the tool I trust most. Here’s why it’s worth every penny.



One tester that works on almost every battery I see

Compatibility is where the BA640 immediately stood out.



I have a 12V sedan with a flooded battery. My dad drives a 24V truck with AGM. A friend owns a vintage 6V motorcycle with a GEL battery. Before the BA640, I needed different testers for all of those. Now one device covers them all.



The BA640 supports 6V, 12V, and 24V lead-acid batteries, including flooded, AGM, GEL, and EFB types, and also evaluates vehicle starting and charging systems. That’s a huge time‑saver for anyone working on multiple vehicles.



A real example:
Last month my friend’s motorcycle didn’t start. His old tester couldn’t handle a 6V GEL battery. I pulled out the BA640, selected the Motorcycle menu, chose GEL, and in seconds it showed State of Health (SoH) ~85% and State of Charge (SoC) ~30%. The battery just needed charging, not replacing—saved him about $150.



Accuracy you can rely on without reading a manual for hours



Accuracy matters more than flashy features. The BA640 uses conductance‑based testing and displays a full set of useful metrics:

• Cold Cranking Amps (CCA)

• Internal resistance

• Voltage

• State of Charge (SoC)

• State of Health (SoH)

What I like best is the clarity of results: it aligns with major standards and gives straightforward conclusions such as GOOD BATTERY, GOOD–RECHARGE, or REPLACE. That’s perfect for beginners who don’t want to decode technical jargon, yet still detailed enough for enthusiasts who want precise data. The product page confirms support for multiple test standards like JIS, DIN, SAE, and others, plus broad range coverage.



I compared its readings to a professional tester at a local shop that costs several times more, and the results were very close. Case in point: I tested a neighbor’s car, and the BA640 reported CCA ≈ 450A—well below the recommended 600A. Sure enough, the battery died a week later, but she had time to replace it before getting stranded. That made me trust the device even more.



Simple to use, and genuinely safe

Ease of use and safety were big priorities for me—and Leagend nailed both:

• One-key quick test: clamp on, select battery type, press Test. No complicated setup.

• Built-in protections: reverse polarity protection, short-circuit protection, over-temperature protection. I’ve accidentally reversed clamps twice—each time it just beeped and showed an error. No sparks, no damage.

• Bright, easy screen: the 2.8-inch backlit color screen is readable even in sunlight, and the menu is intuitive.

I taught my 18-year-old nephew to use it in about ten minutes, and he was confidently testing batteries solo. That’s exactly what you want from a tool you’ll hand to others.



More than a battery tester: real diagnostics when things are unclear

What sets the BA640 apart from basic testers is its deeper diagnostic ability.



It performs cranking system tests and charging system analysis, plus real-time voltage curve display and playback. That turned out to be incredibly useful recently:



A customer’s car kept having starting trouble even after installing a new battery. Using the BA640’s cranking test, I watched the voltage waveform and saw it dipping below 9V during startup—an indication of a problem elsewhere in the system. We discovered a faulty alternator rectifier, not a dead battery.



Without that waveform view and charging analysis, we might’ve wasted hours guessing.



If I need to share results, the BA640 can connect to a computer via USB to print detailed reports—complete with internal resistance values, CCA readings, and timestamps. That’s a very professional touch for a tester at this price.



Built‑in history tracking that turns guesswork into data

The BA640 stores up to 1,400 historical test records, divided into categories for battery tests, starting tests, charging tests, and voltage curves—350 records each. That’s extremely useful for tracking battery health over time instead of treating every test as a one-off.



I’ve been monitoring my dad’s truck battery for the past few months. Watching internal resistance creep from around 5.2 mΩ to 6.1 mΩ gave us a clear, data-driven signal that a replacement might be needed next year—not today, not too late. No more guessing based on feel or anecdote.



Durable, practical, and truly portable

The BA640 feels built to last:

• Operating range: -10°C to 60°C—works in winter and summer without waiting for the tool to warm up.

• Compact size: easy to store in a toolbox or glove compartment, so it’s always on hand when needed.

I’ve dropped it off a workbench a couple of times—no cracks, no failure. That kind of ruggedness matters in a real garage setting, not just in marketing photos.



Any downsides?

Honestly, only one small gripe: the USB cable used for printing could be a bit longer. That’s a tiny nitpick compared to everything else it does.



For the price, the professional‑grade features like conductance testing, multi-standard alignment, waveform analysis, safety protections, and broad battery support make the BA640 hard to beat.



Who should get this tester?

Pretty much anyone who wants to stop guessing about battery health:

• DIY enthusiasts who want clear, reliable answers

• Small business owners or mobile mechanics needing dependable diagnostics

• Fleet operators or owners of multiple vehicle types

• Drivers tired of replacing batteries too early or finding out too late

It’s affordable, accurate, versatile, and packed with features even seasoned mechanics appreciate.



Final verdict

After months of real-world use, the Leagend BA640 is easily one of the best tools in my garage. It has saved money, prevented unnecessary replacements, and helped diagnose problems faster and more accurately than older testers I’ve used. I’ve already recommended it to fellow DIYers and a local shop owner—who bought several units for the team.



If you’re tired of unreliable testers or tools that only do half the job, the BA640 is a smart buy. It will save you time, money, and headaches—exactly what a good battery tester should do.
